corrugate roll forming machine

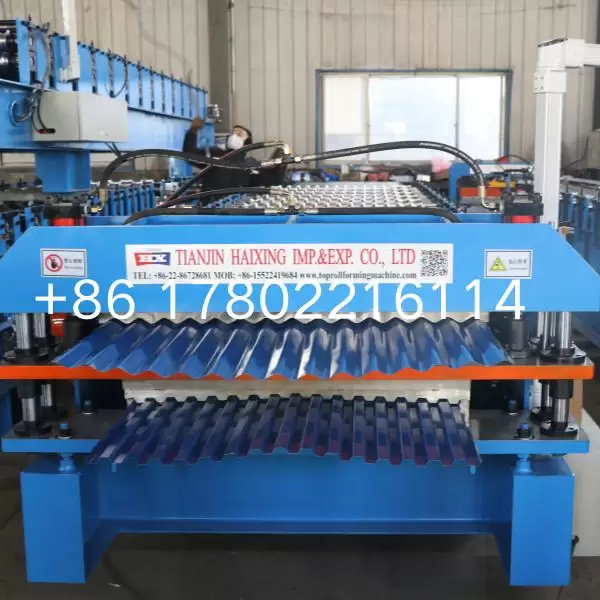

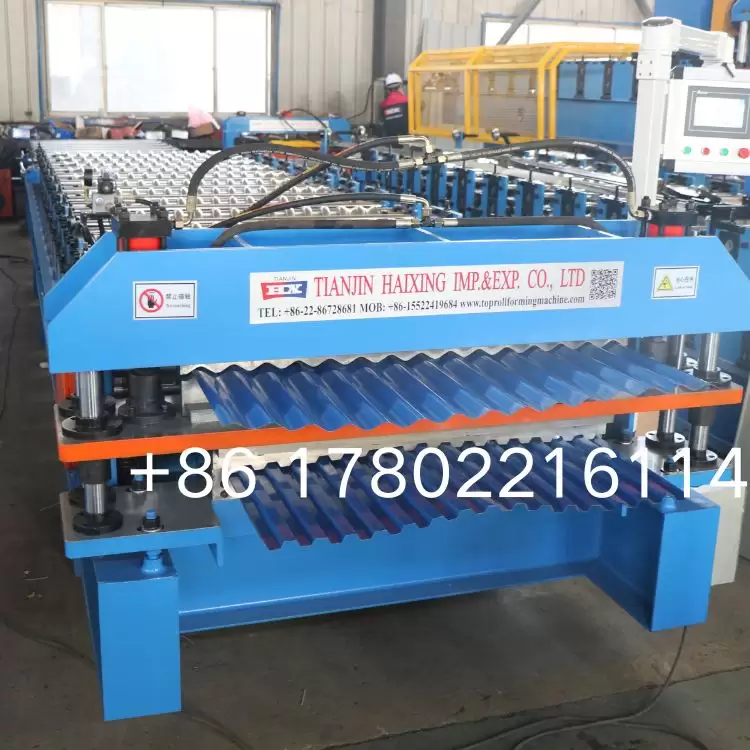

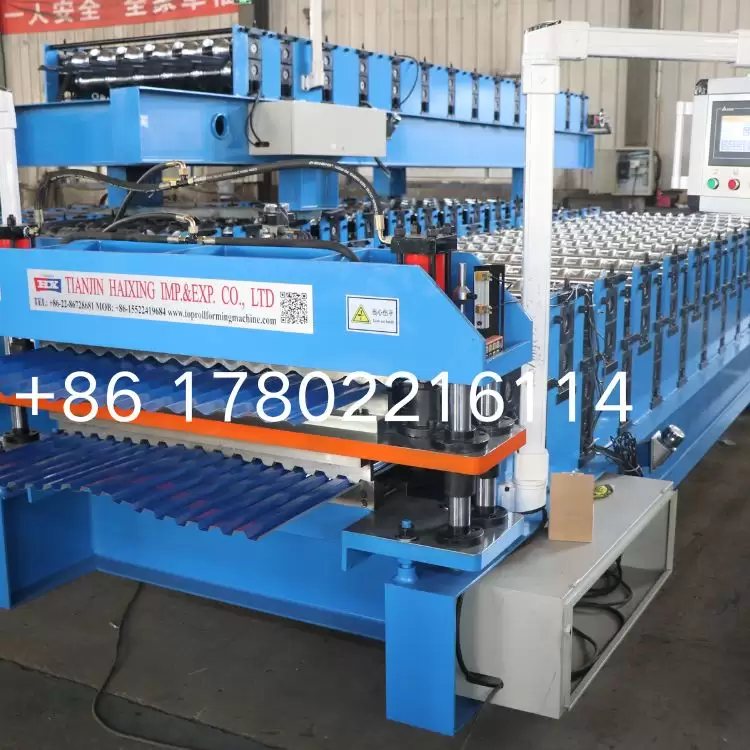

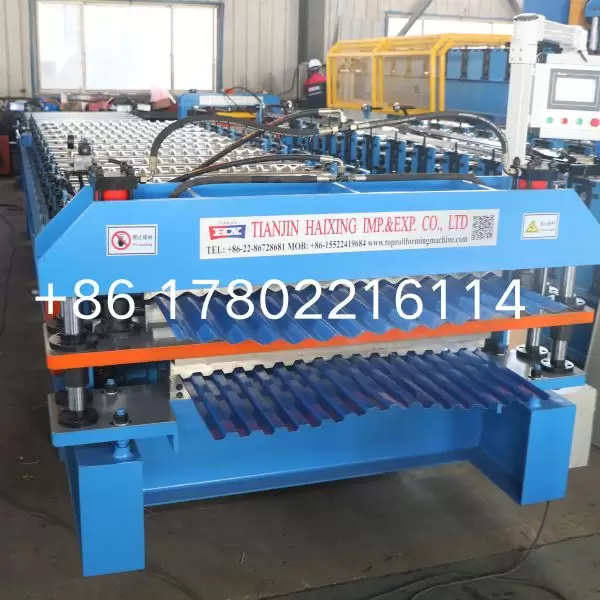

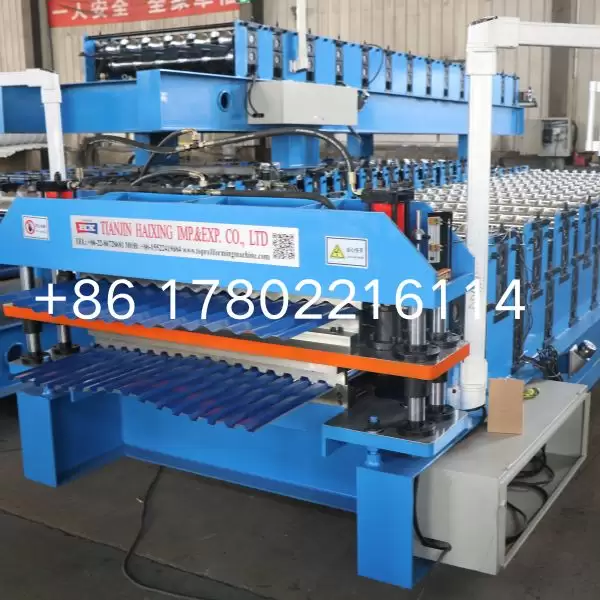

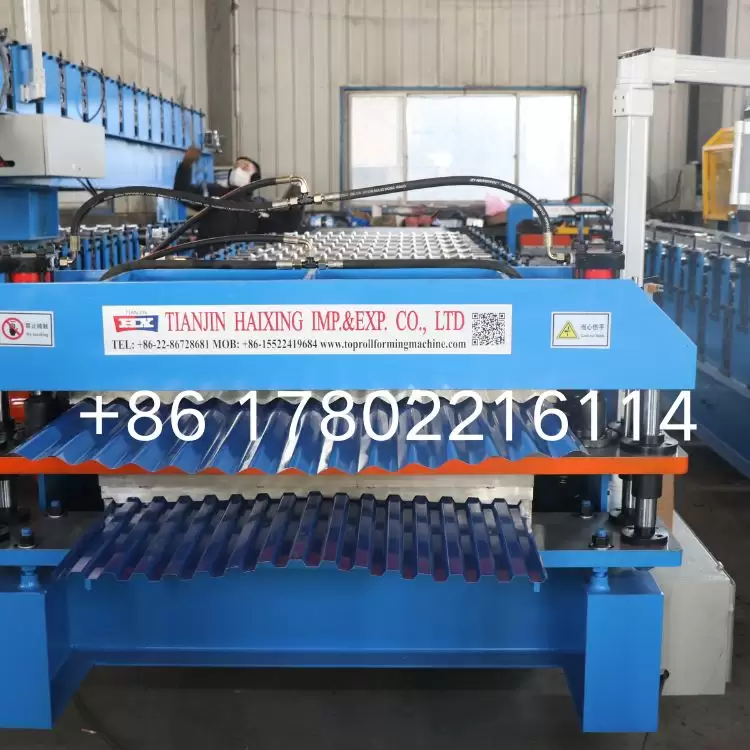

The 988 corrugate and 952 trapezoidal roll forming machine is a versatile and efficient roofing panel production line. It integrates two popular profiles in one machine, allowing quick switching between 988 corrugated and 952 trapezoidal sheets. Built with high-strength rollers and a user-friendly control system, it ensures precise forming, stable performance, and long service life—ideal for large-scale roofing projects.
Machine Details
988 corrugate 952 trapezoidal roll forming machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 988mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15+15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 7.5+5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
Backed by over 28 years of experience and 1,200+ successful installations worldwide, we are recognized as a reliable industry expert.
All our machines are CE and ISO certified, guaranteeing high standards of quality and safety.
We provide extended warranty coverage of up to 18 months for added assurance.
Our team also delivers expert on-site setup and full training services to ensure smooth operation.
About Us
Haixing Tianjin is a trusted name in advanced cold forming solutions, providing high-precision roll forming machines designed specifically for the roofing and construction industries. With more than 28 years of experience, we have established long-term partnerships with clients in over 150 countries. Our CE and ISO certifications reflect our commitment to quality, while our engineering excellence ensures reliable performance and consistent results that meet global standards.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
