trapezoidal and corrugated metal plate rolling machine
trapezoidal and corrugated metal plate rolling machine

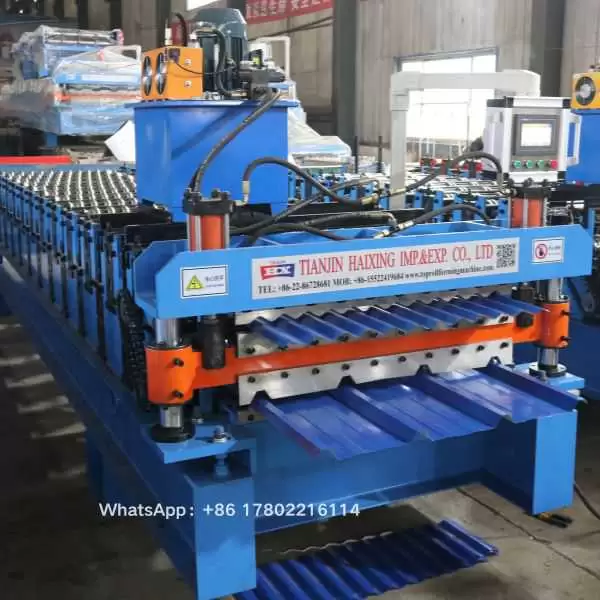

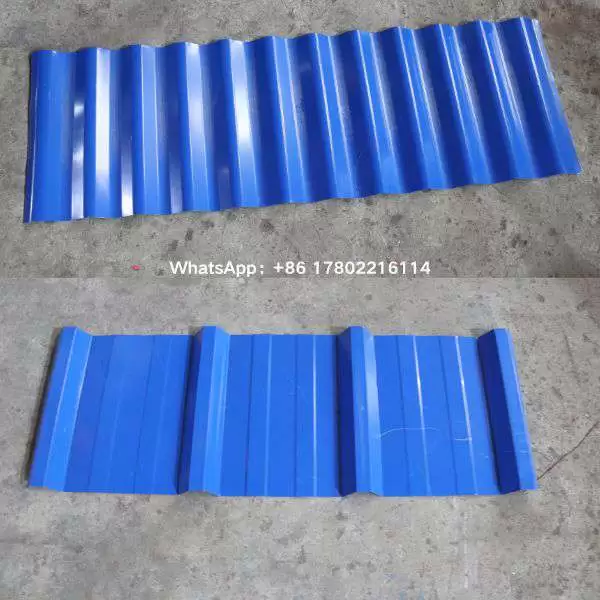

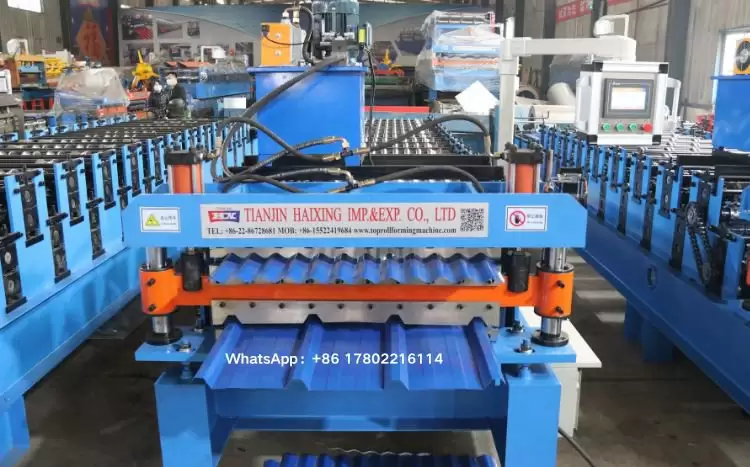

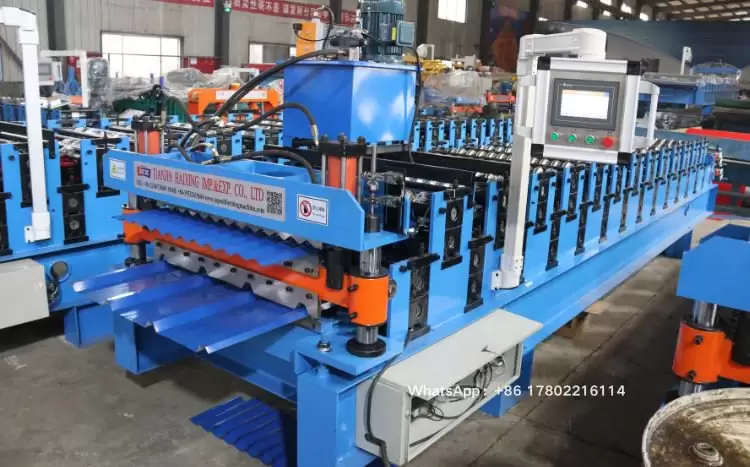

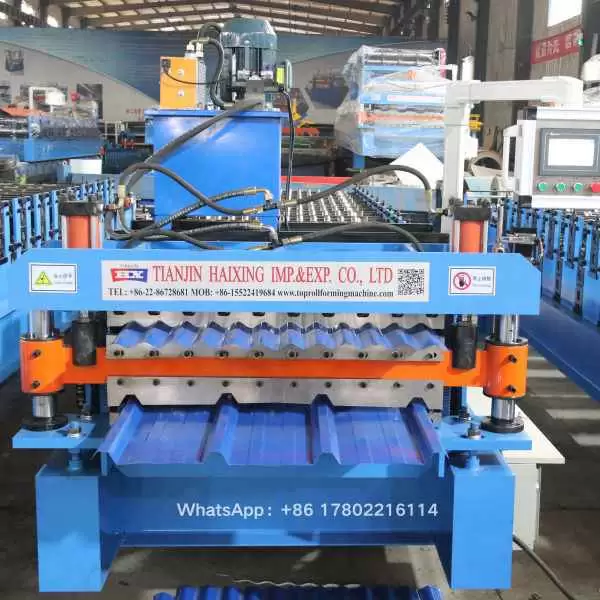

Haixing Tianjin's trapezoidal and corrugated metal plate rolling machine combines precision engineering with unparalleled efficiency for global roofing production. Equipped with 45# forged steel rollers with a chrome plating thickness of 0.05 mm, the equipment can simultaneously produce 0.3-0.8 mm thick galvanized steel/aluminum sheets into trapezoidal bases and corrugated surfaces at a speed of 15 m/min. The dual Cr12MoV cutting system ensures that the tolerance of both layers of tiles is ±1 mm, which increases the output by 40% compared to single-line production. The PLC multi-language control system supports preset profiles, batches and lengths, and is set through an industrial touch screen. At the same time, the trapezoidal and corrugated metal plate rolling machine's CE/ISO-certified safety system includes an emergency brake and a dust-proof electrical cabinet. With more than 1,200 units installed in 30 countries, the equipment is ideal for roofing projects.
Machine Details
trapezoidal and corrugated metal plate rolling machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 03-0.8mm |
| Width | as customized |
| Decoiler | Manual decoiler(will give you as free) |

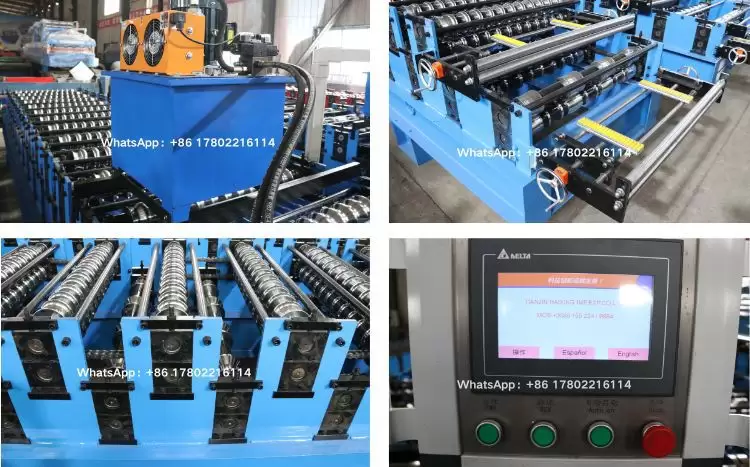

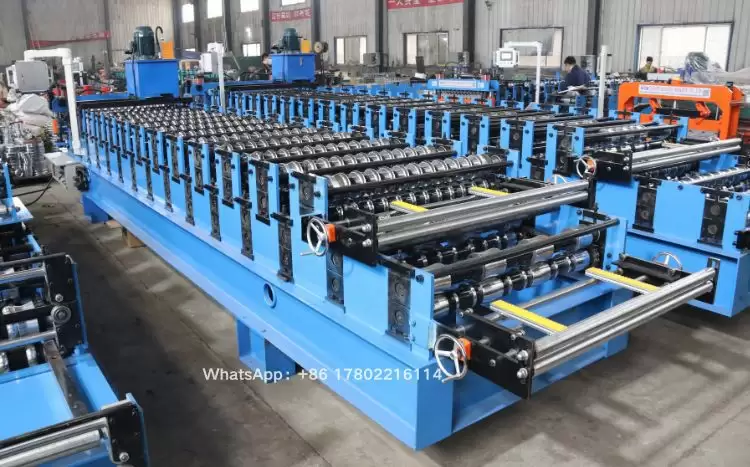

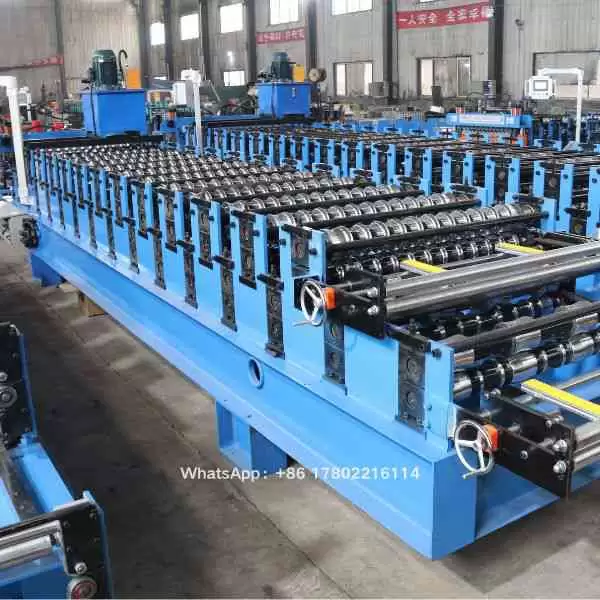

| Roller station | 13+15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
28 years of focus on manufacturing:
We have been deeply involved in the field of tile pressing machines since 1996, with profound technical accumulation.
Global actual combat verification:
Equipment exported to 80+ countries, adapting to various climates and working conditions.
EU CE/International ISO certification:
Strictly implement international standards, safety and compliance are guaranteed.
One-to-one solution customization:
Customize the production line according to your plate thickness, wave shape, and output requirements.
About us
Engineering Excellence, Global Trust – Built Over 28 Years

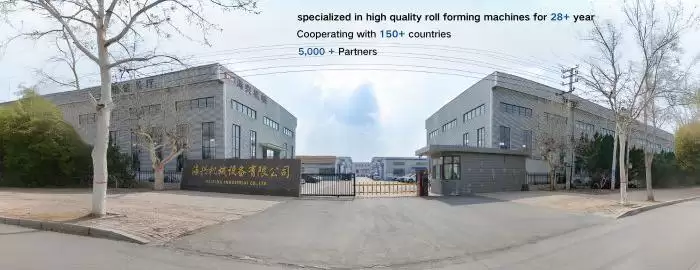

Since 1996, Haixing Tianjin has been at the forefront of designing and manufacturing premium cold roll forming machines for the global construction industry. With over 28 years of engineering expertise, CE and ISO-certified processes, we deliver innovative, high-performance machinery that drives productivity for clients across Europe, the Americas, Africa, and beyond.Rooted in a philosophy of "Innovation Through Partnership," we collaborate closely with clients to understand their unique market needs. From initial profile design to on-site installation support and multilingual after-sales service, we empower businesses to thrive with technology that exceeds global standards.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for automatic zinc steel trapezoidal corrugated iron sheet roofing glazed tile making machinery three layer roll forming machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the automatic zinc steel trapezoidal corrugated iron sheet roofing glazed tile making machinery three layer roll forming machines can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
