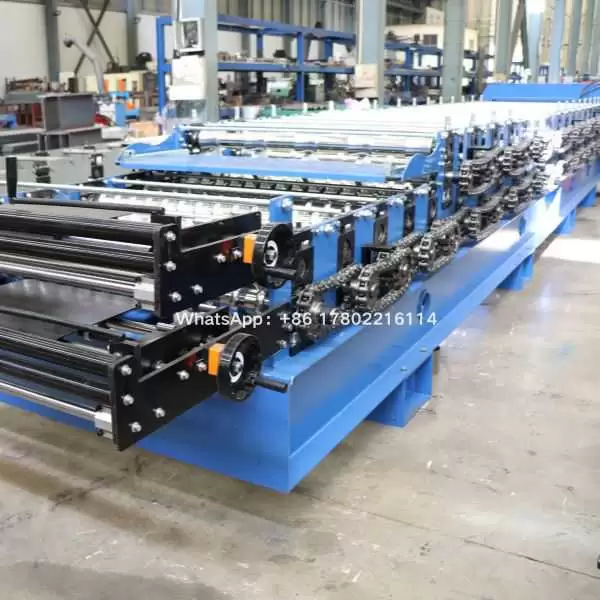

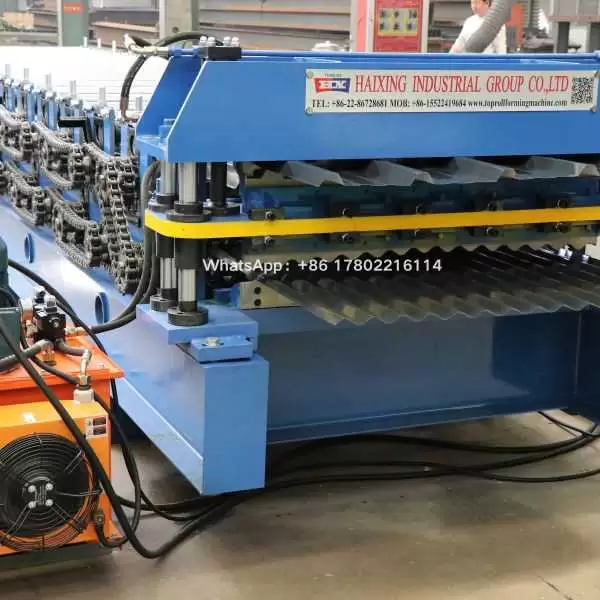

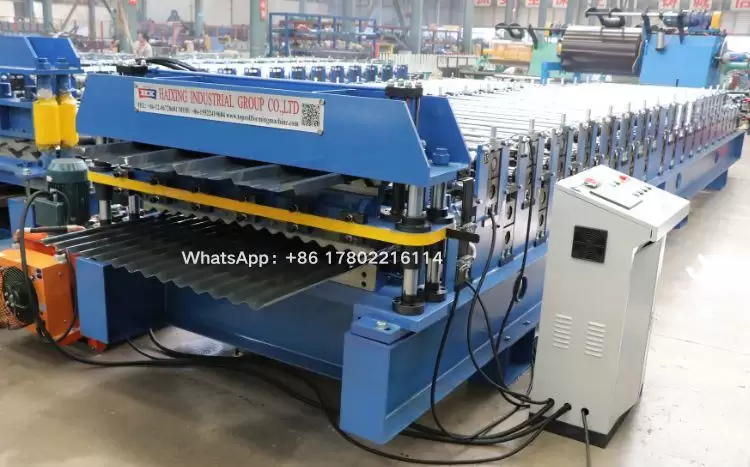

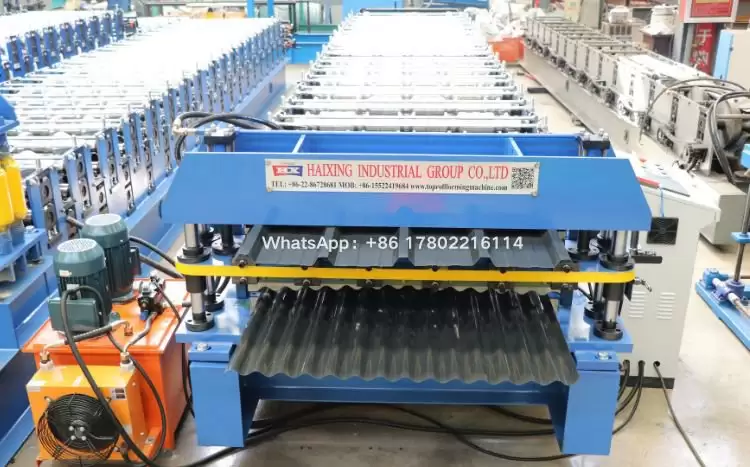

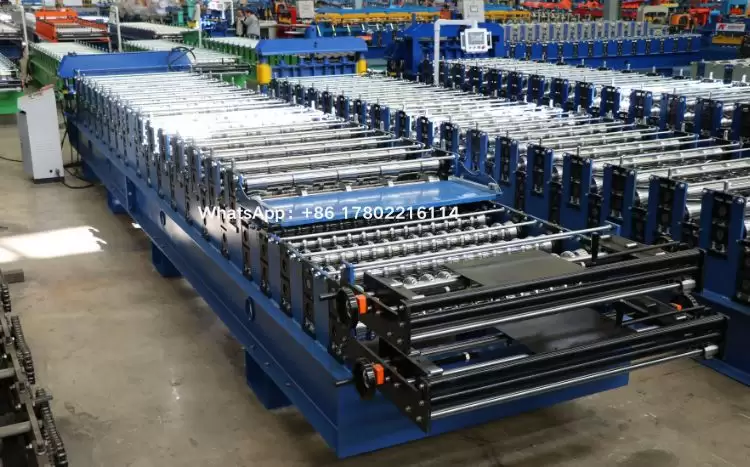

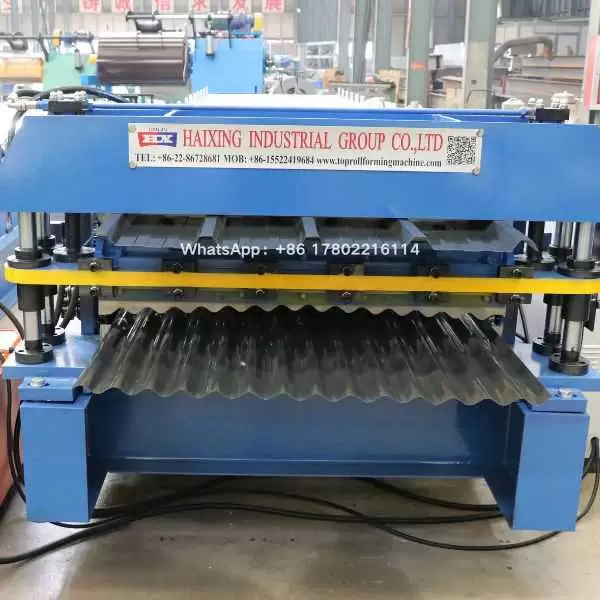

1000 and 988 double layer roofing machine
1000 and 988 double layer roofing machine
1000 and 988 double layer roofing machine , machine experience superior performance with precision-ground 45# steel rollers, chrome-plated (0.05mm) for exceptional wear resistance and extended lifespan. Hardened Cr12MoV cutting tools (58-62 HRC) guarantee clean, burr-free cuts and sustained accuracy . Our robust frame ensures stability for high-speed operation. The intuitive multi-language PLC control system (English, Spanish, etc.) offers seamless operation and simplified setup for global users. Our double layer roofing machine with premium PLCs, motors, and energy-saving variable frequency drives are standard in our medium-to-high-end configurations.
The Haixing Tianjin Advantage: Leverage 28+ years of specialized cold roll forming expertise. As a CE & ISO certified , we deliver globally compliant, high-performance machinery. Our customer-centric approach provides comprehensive solutions: expert profile design consultation, multilingual support, detailed installation guidance, and reliable after-sales service. Backed by a dedicated R&D and export team, we partner with businesses worldwide (Europe, USA, South America) to enhance your efficiency and competitiveness with durable, precision machinery offering outstanding long-term value. Choose Haixing Tianjin – Your Trusted Partner in Profiling Solutions.

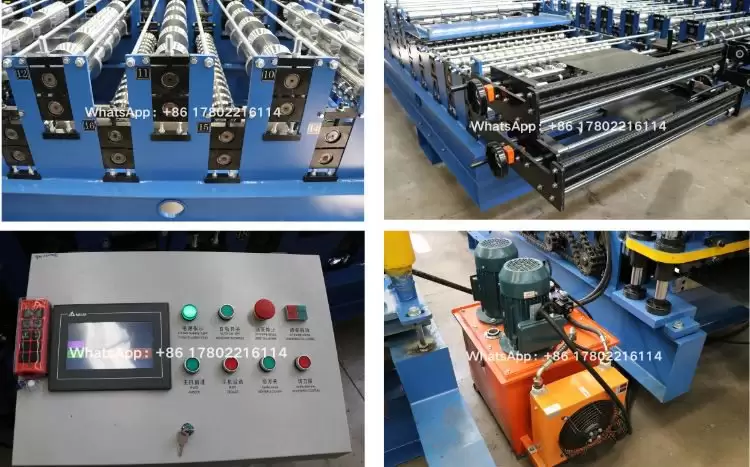

machine details
1000 and 988 double layer roofing machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15+20 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 220V 60Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
28 Years of Experience with 1200+ Installations Worldwide
Provide CE, ISO Certifications
18 Months Warranty Extension Options
On-Site Commissioning Available

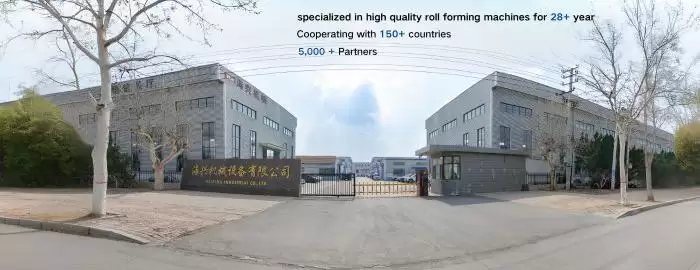

About Us
We provide precision engineering solutions in cold forming technology. For over 28 years, Haixing Tianjin has been a leader in manufacturing the highest quality cold forming machines, serving customers in over 150 countries. As a CE and ISO certified gold supplier, we combine Chinese engineering excellence with global operating standards to deliver roofing solutions.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for automatic zinc steel trapezoidal corrugated iron sheet roofing glazed tile making machinery three layer roll forming machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the automatic zinc steel trapezoidal corrugated iron sheet roofing glazed tile making machinery three layer roll forming machines can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
