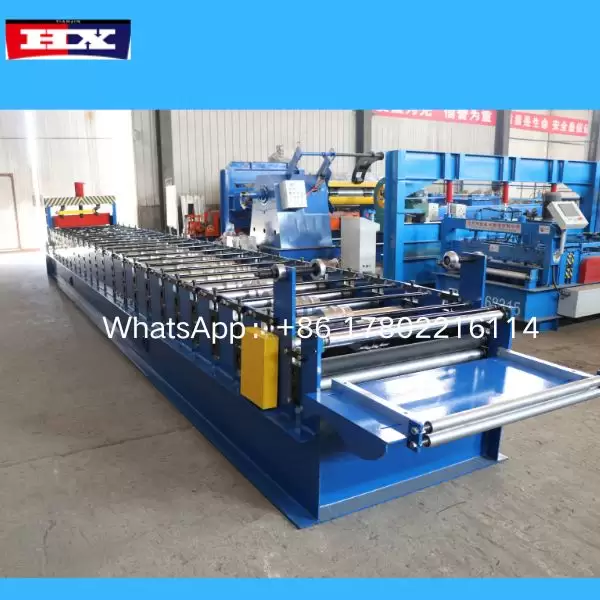

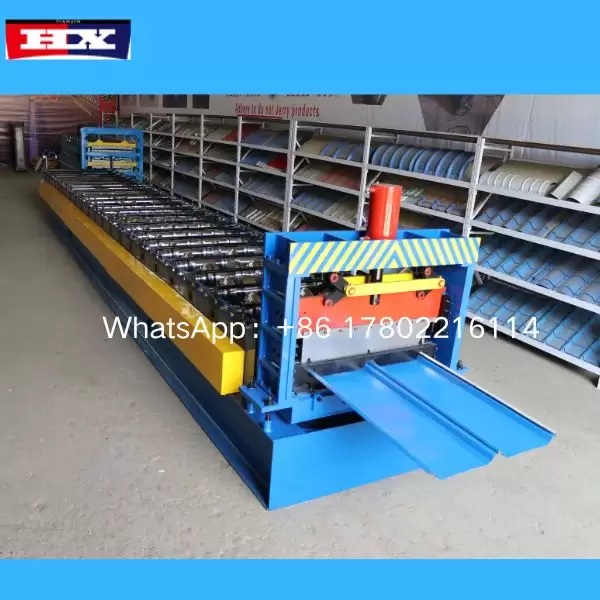

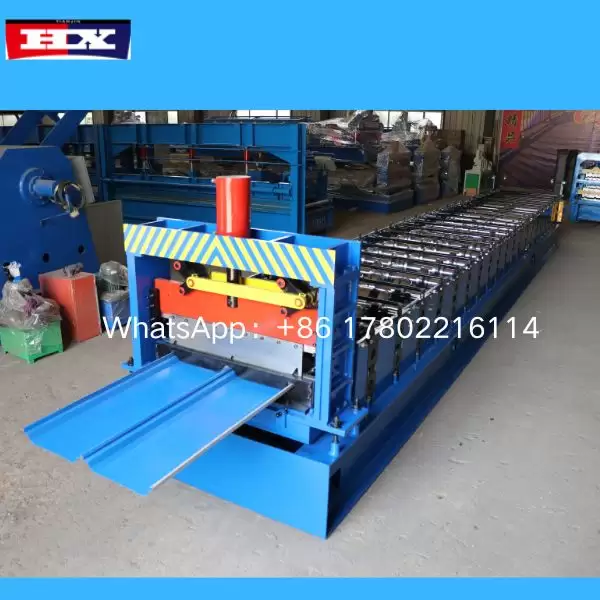

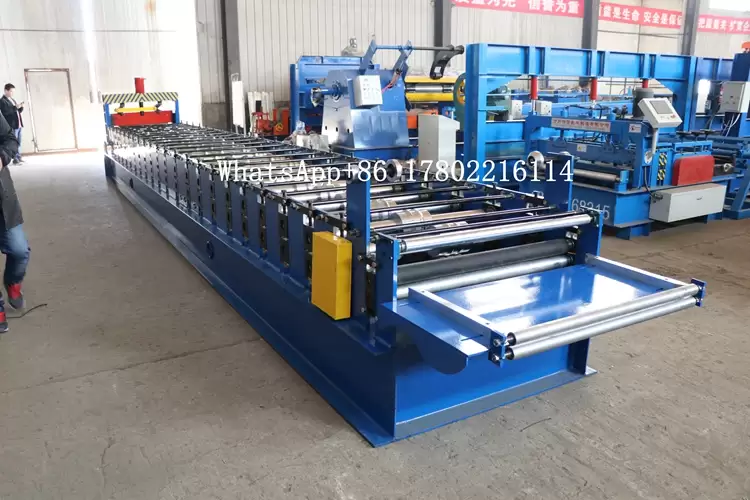

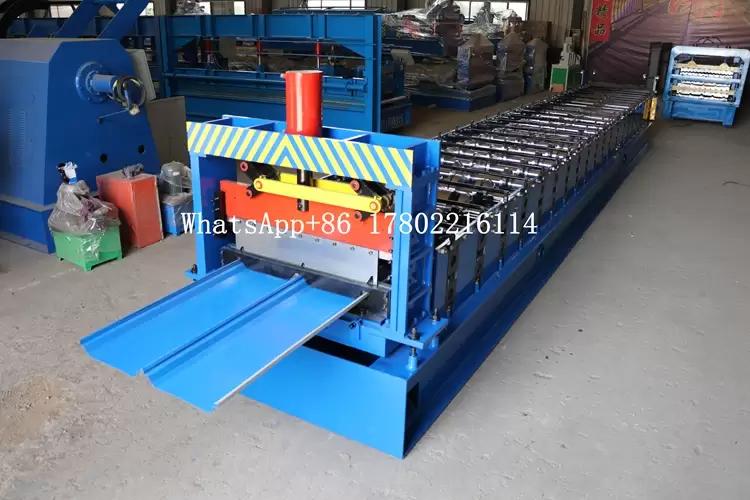

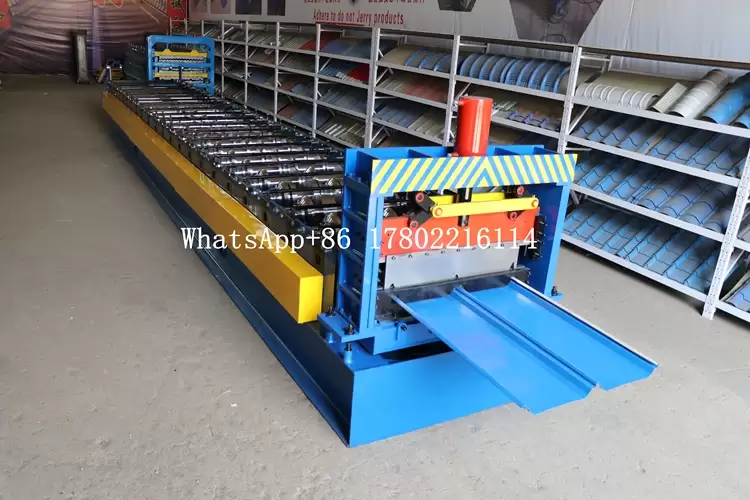

JCH metal roof making machine
HX-JCH metal roof making machine
Engineered for efficiency, the JCH metal roof making machine ensures consistent output across a wide range of profiles.WhatsApp+86 17802216114Email ：bernice@hx-machinery.com
metal roof making machine
The JCH metal roof making machine is designed to meet the demands of modern roofing production with high efficiency and precision. With advanced control systems and robust components, the JCH metal roof making machine offers reliable performance, making it an ideal choice for manufacturers looking to produce consistent, high-strength metal roof sheets.
metal roof making machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 914mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 18rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 7.5+5.5KW |

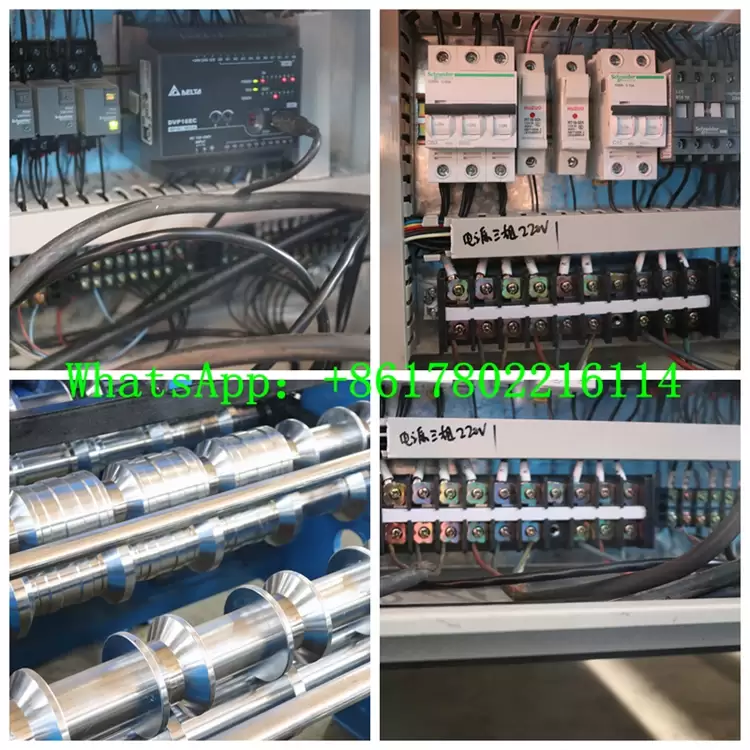

| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
With nearly three decades of experience and over 1,200 machines successfully running in more than 150 countries, we have earned a strong reputation in the roll forming industry. All our machines are built to meet stringent CE and ISO standards, guaranteeing reliable performance and operational safety. To support your long-term success, we provide extended warranty coverage of up to 18 months. Each machine also includes full on-site installation and expert training to ensure smooth startup and maximum productivity from day one.
About Us
Haixing Tianjin is a leading manufacturer in cold forming technology, dedicated to producing precision roll forming machines for the roofing and construction industries. With more than 28 years of experience, we have earned the trust of customers in over 150 countries by delivering dependable, high-efficiency equipment. Certified by CE and ISO, our machines combine advanced Chinese engineering with global standards, ensuring long-lasting performance and top-tier quality across international markets.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
