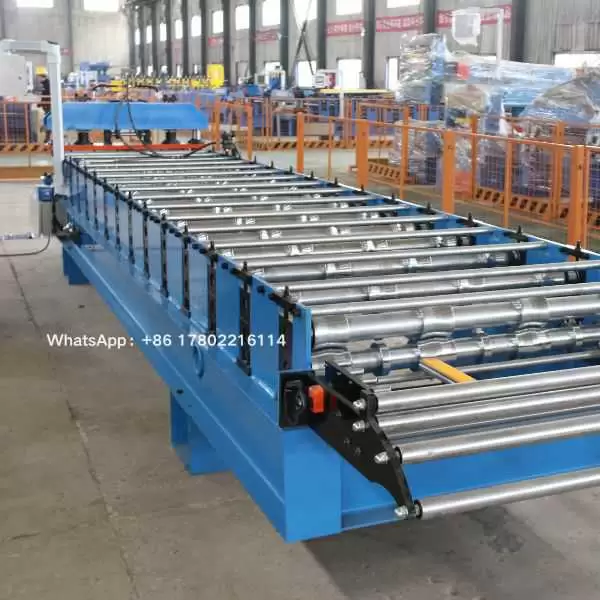

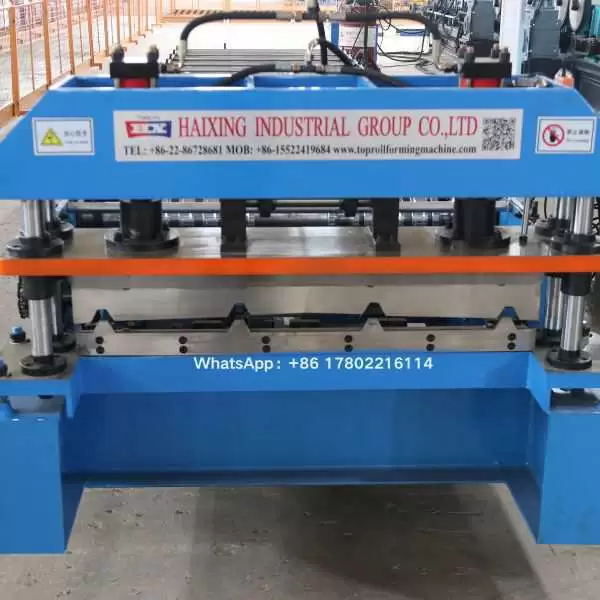

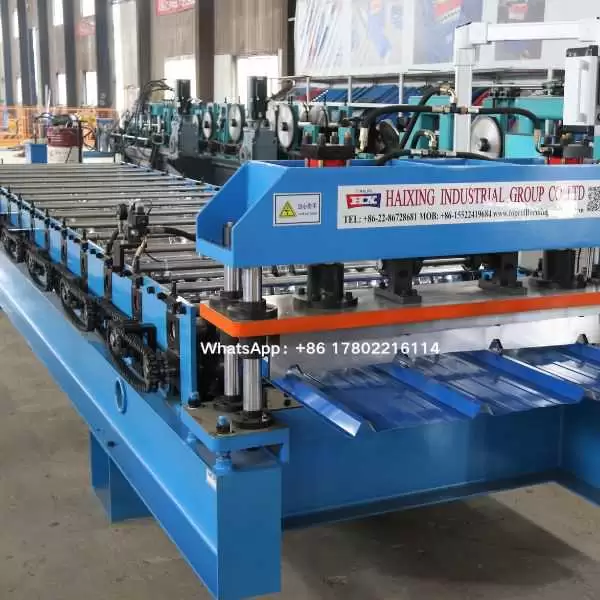

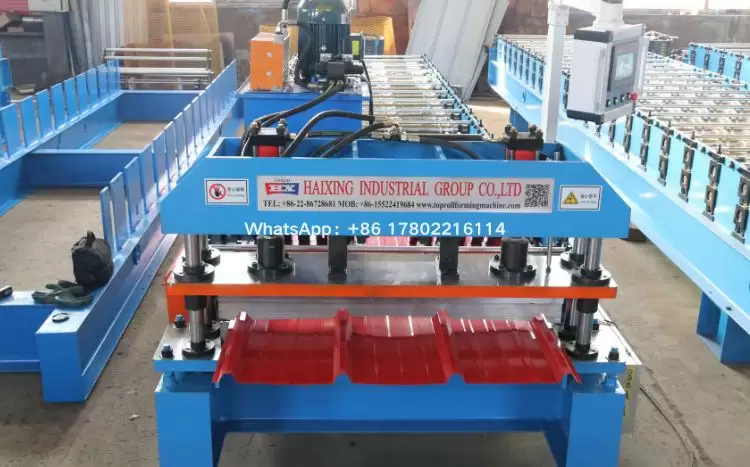

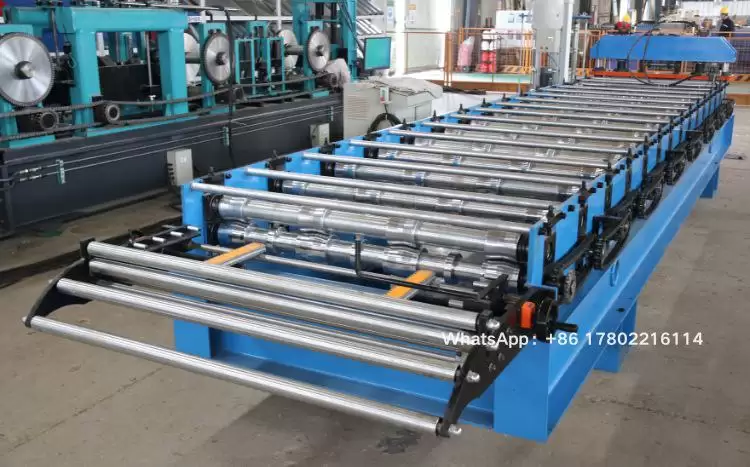

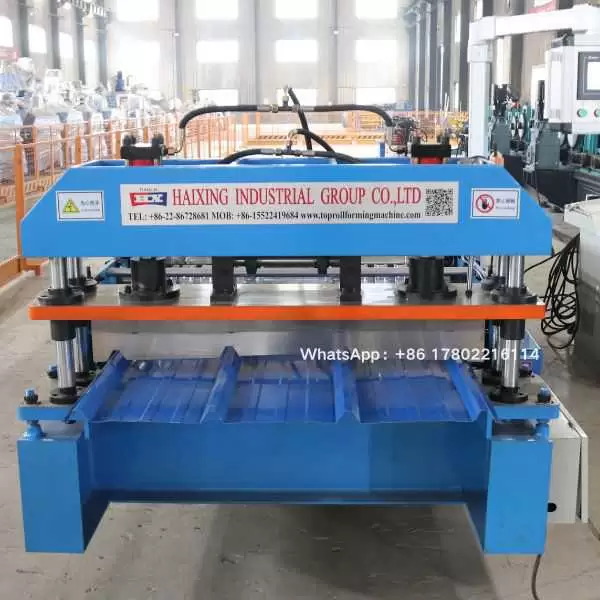

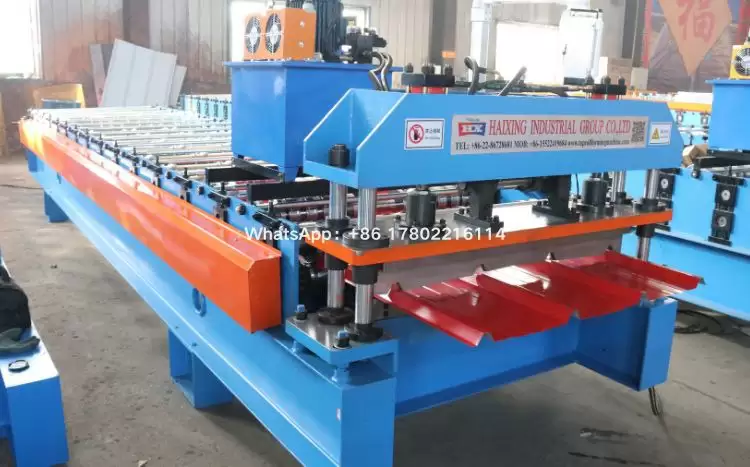

TR4 trapezoidal roof panel machine
TR4 trapezoidal roof panel machine
TR4 trapezoidal roof panel machine, our machines are designed for high-volume production of architectural-grade TR4 profile roofing sheets with superior performance for residential, commercial and industrial applications. Equipped with 45# forged steel rollers with chrome plating up to 0.05mm thickness, the machines ensure excellent wear resistance and perfect surface finish for galvanized steel, aluminum and color-coated coils. Equipped with Cr12MoV hardened knives, they ensure sharp and burr-free cutting accuracy. Intuitive multi-language PLC control system (English/Spanish, etc.) allows easy operation and real-time monitoring.
Backed by Haixing Tianjin's 28+ years of excellence: CE and ISO certified manufacturing processes ensure compliance with global standards, while our professional R&D team can provide customized solutions. From installation guidance to lifetime technical support in multiple languages, we work with customers in Europe, America and beyond to enhance their competitiveness.

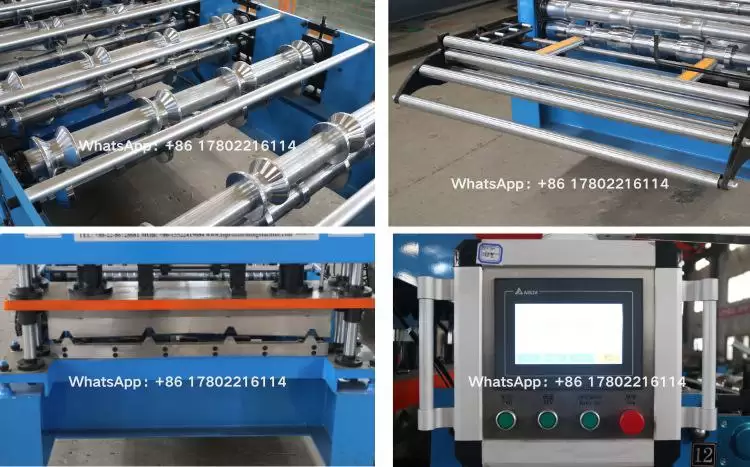

Machine Details:
TR4 trapezoidal roof panel machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 3800V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why choose us
*Decades of expertise
Benefit from over 28 years of specialized R&D and manufacturing experience, supported by a team of engineers dedicated to developing cold roll forming technology.
*Global compliance, localized support
Our machines comply with CE, ISO and international safety standards. Enjoy seamless communication with our multilingual team and localized service networks.
*Customized solutions for each market
Whether we produce lightweight roofing in Europe or heavy structures in South America, we customize machine parameters, tooling and control systems to match regional material specifications and production goals.
About us
Engineering excellence, global trust – built over 28 years

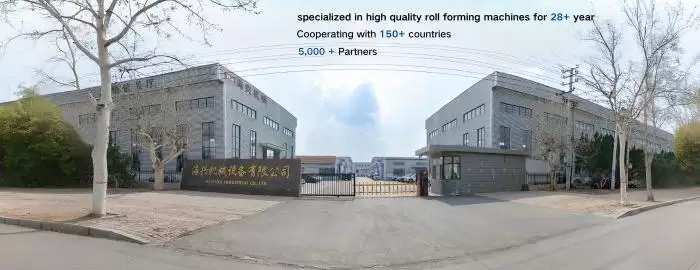

Since 1996, Haixing Tianjin has been a leader in the design and manufacture of the highest quality cold bending machines for the global construction industry. With over 28 years of engineering experience, CE and ISO certified processes, we deliver innovative and efficient machines that increase customer productivity in Europe, America, Africa and beyond.
Rooted in a philosophy of "Innovation Through Partnership," we collaborate closely with clients to understand their unique market needs. From initial profile design to on-site installation support and multilingual after-sales service, we empower businesses to thrive with technology that exceeds global standards.
FAQ:
Q: Are you a trading company or a factory?
A: We are a factory with a professional and service-conscious production team, only for exporting various types of cold roll forming machines.
Q: Can one machine produce only one type of panel profile?
A: Not completely. Suitable for automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines, glazed tiles. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: Generally, automatic three-layer galvanized steel trapezoidal corrugated roofing sheet roll forming machines can be finished in 20 to 45 working days. But if you need the machines urgently, we can save your time.
Q: Is there any quality control when producing the production line?
A: Yes, we have a team responsible for quality control, including raw material placement, roller and other parts processing, roller and shaft surface processing, assembly, testing and packaging.
