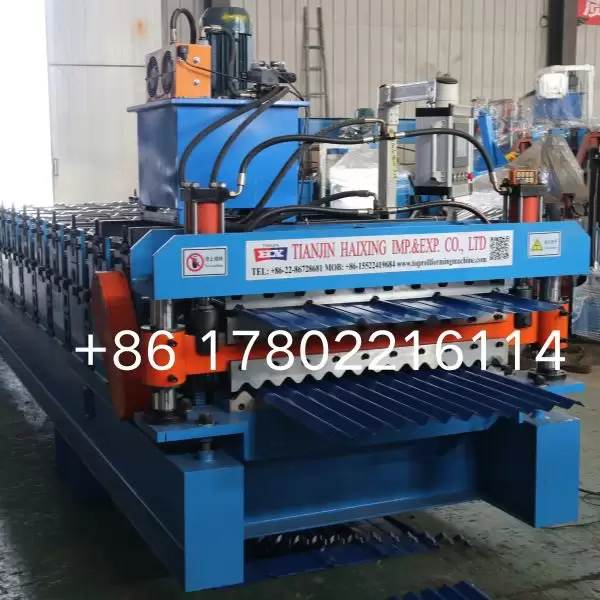

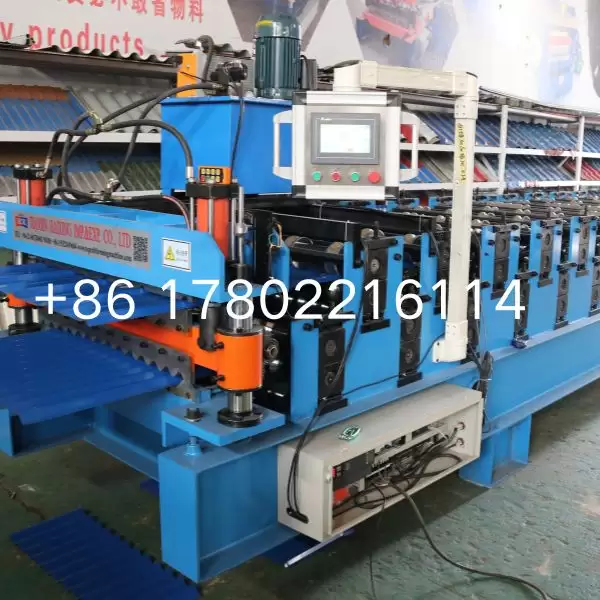

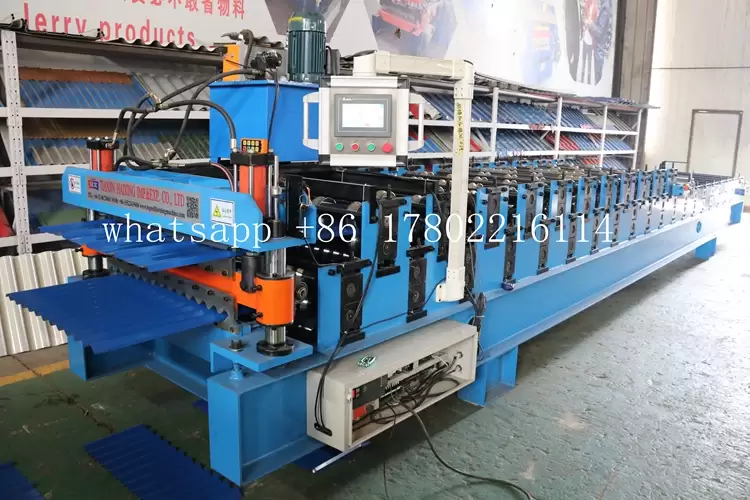

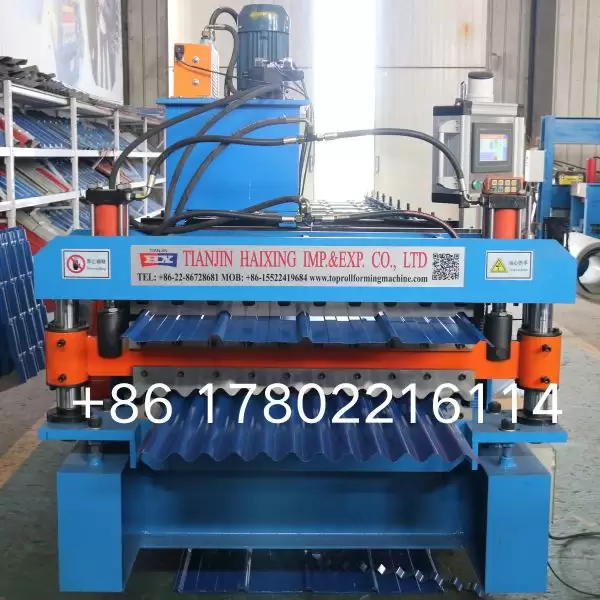

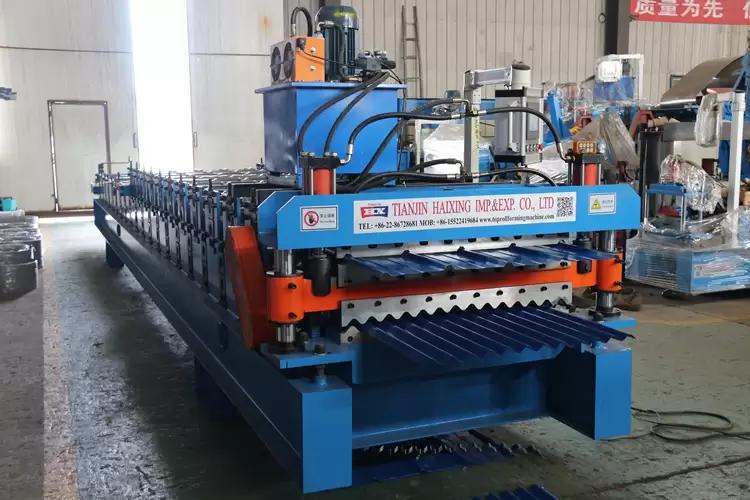

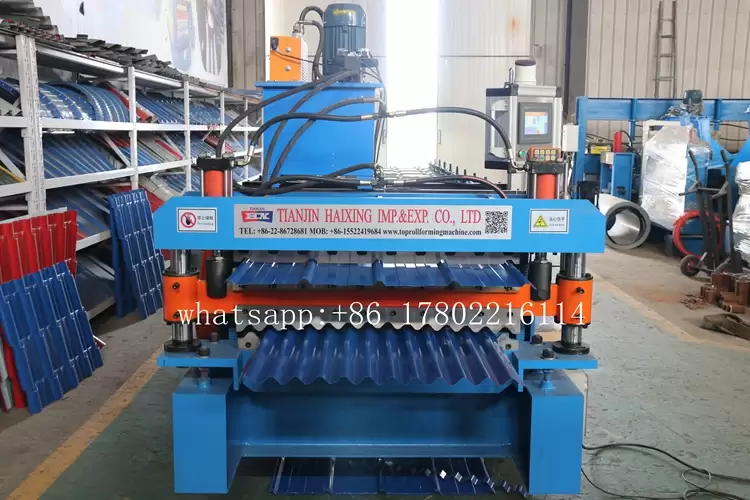

Ag panel and 1064 corrugate panel roll forming machine
The Ag and corrugate panel roll forming machine is designed for efficient and accurate production of metal panels commonly used in roofing, siding, and agricultural buildings. It features a robust structure, precision rollers, and an automated PLC control system to ensure consistent quality and high-speed output. Ideal for large-scale production with minimal maintenance needs.
Ag and corrugate panel roll forming machine Machine Details
Ag and corrugate panel roll forming machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 914mm ,1064mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |

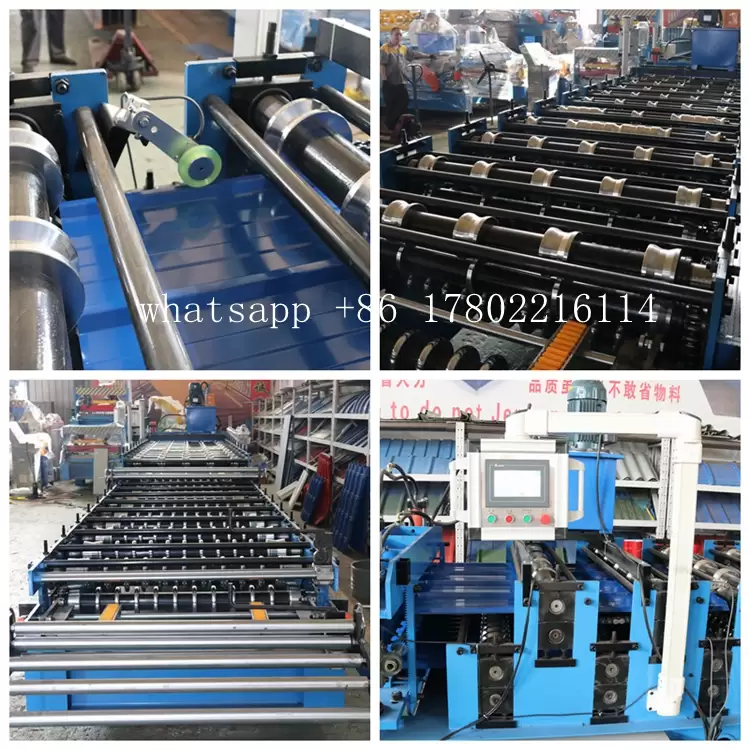

| Roller station | 15+15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 7.5+5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
With more than 28 years of expertise and over 1,200 machines installed globally, we are a trusted leader in the industry.
Our equipment meets strict CE and ISO standards, ensuring both quality and safety.
Extended warranty options are available for up to 18 months.
We also offer professional on-site installation and comprehensive training support.
About Us
Haixing Tianjin specializes in cutting-edge cold forming technology, offering high-precision machinery tailored for the roofing and construction sectors. With over 28 years of industry experience, we have built a solid reputation and serve clients in more than 150 countries worldwide with our reliable and efficient roll forming equipment. As a CE and ISO-certified manufacturer, we integrate robust Chinese engineering expertise with international quality standards to deliver consistent performance and superior product quality across global markets.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
