custom metal roll forming
Custom metal roll forming involves designing and manufacturing specialized rollers and dies to bend and shape metal sheets or strips according to precise client specifications. This process offers flexibility in producing various shapes, sizes, and thicknesses, making it ideal for industries such as construction, automotive, and appliances. By providing efficient, accurate, and cost-effective production, custom roll forming helps businesses achieve high-quality metal components tailored to their unique needs.

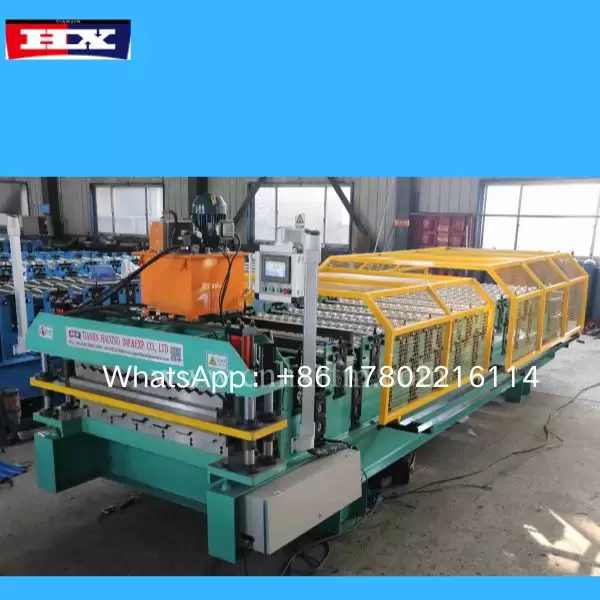

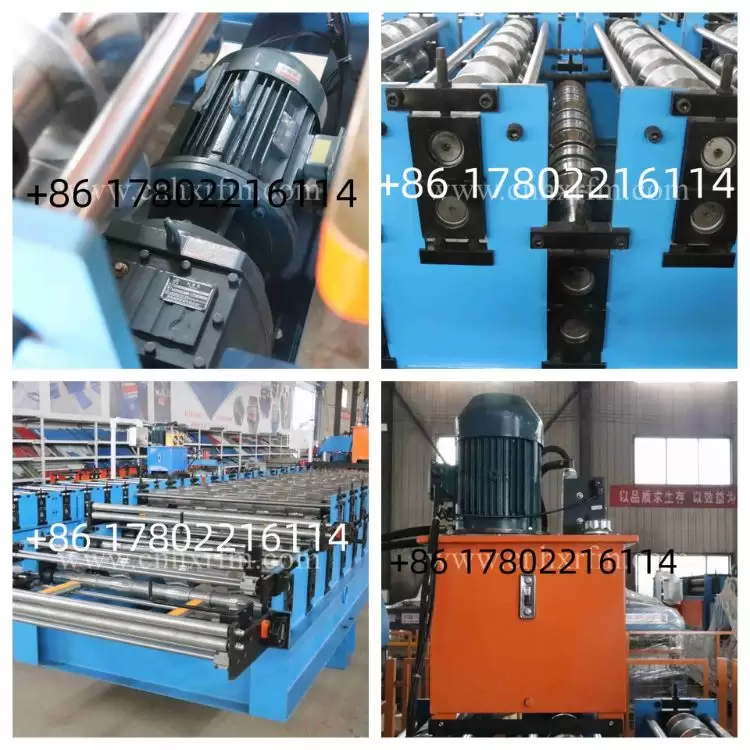

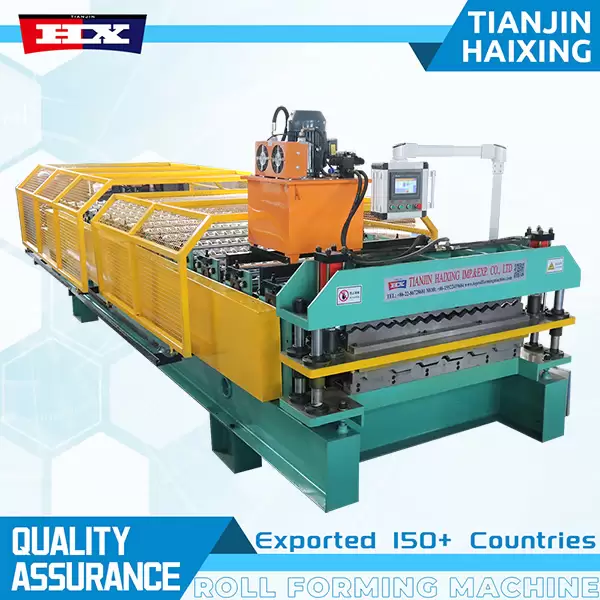

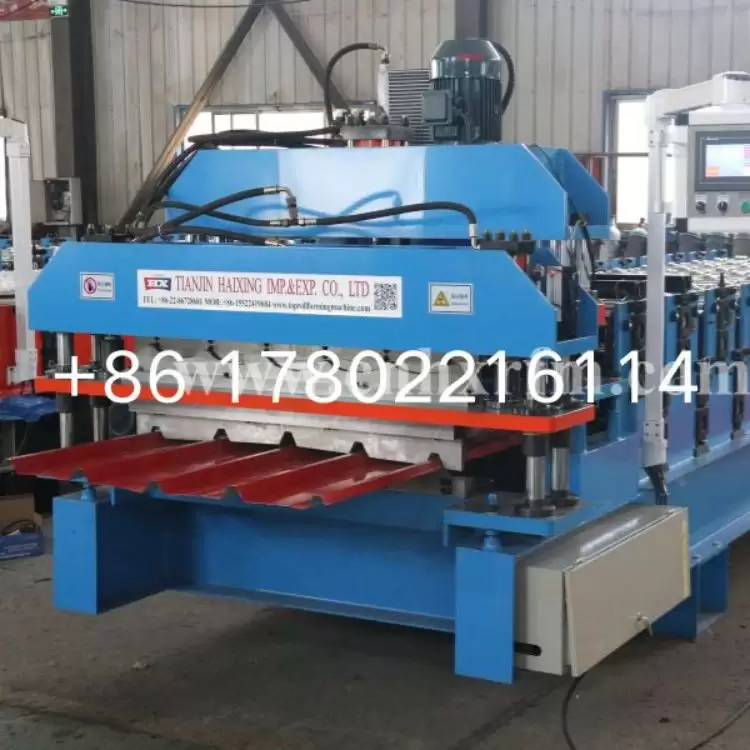

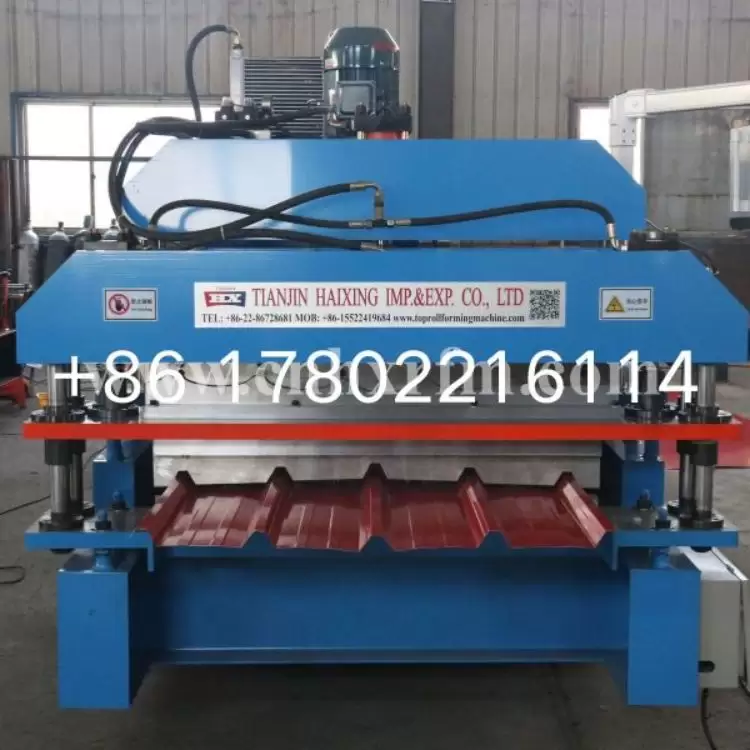

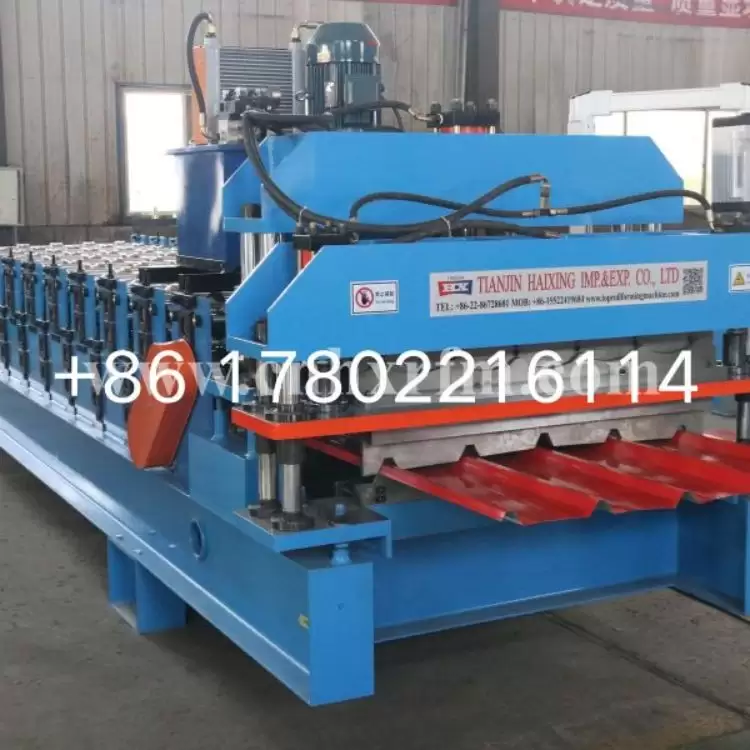

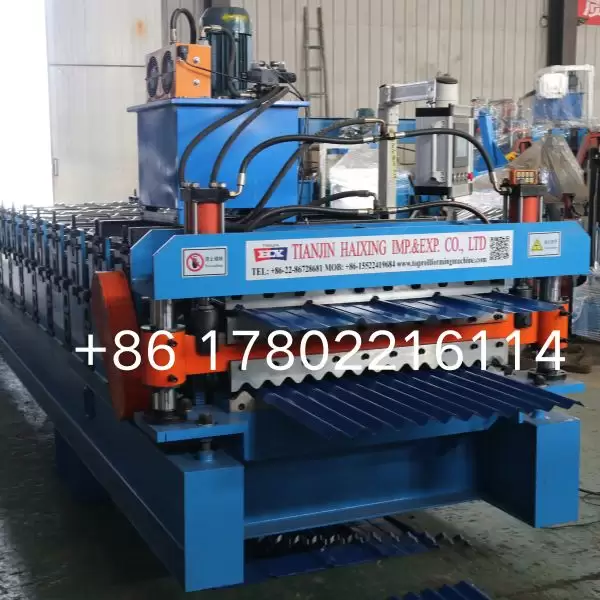

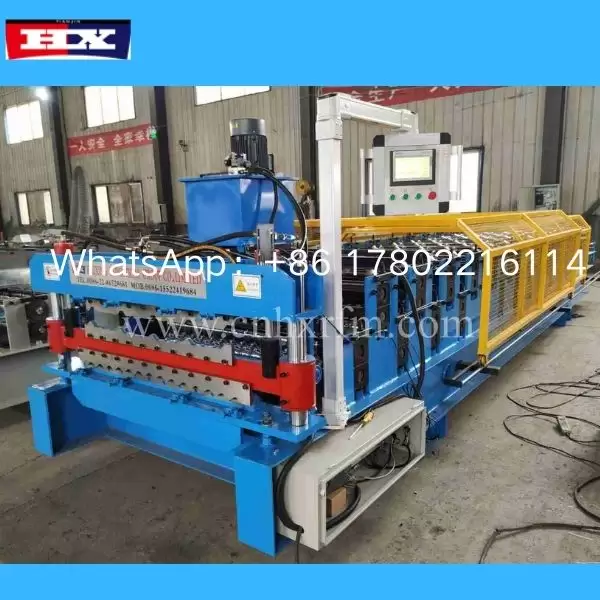

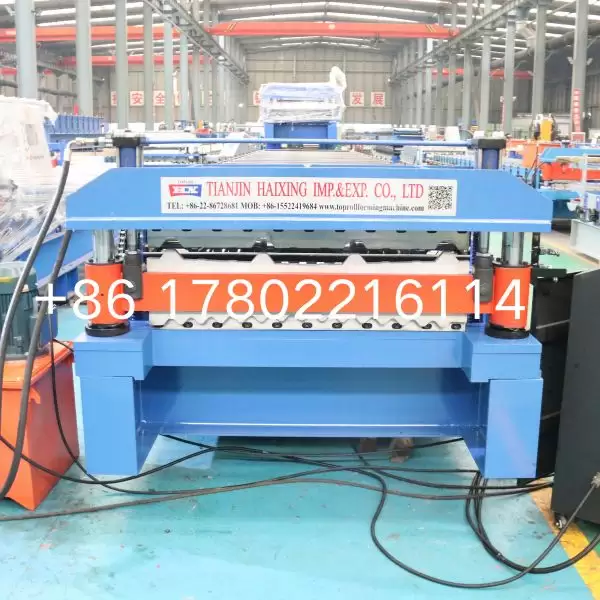

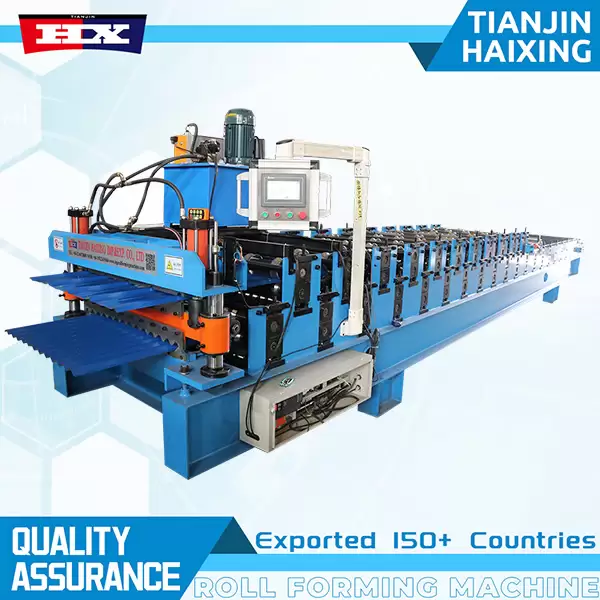

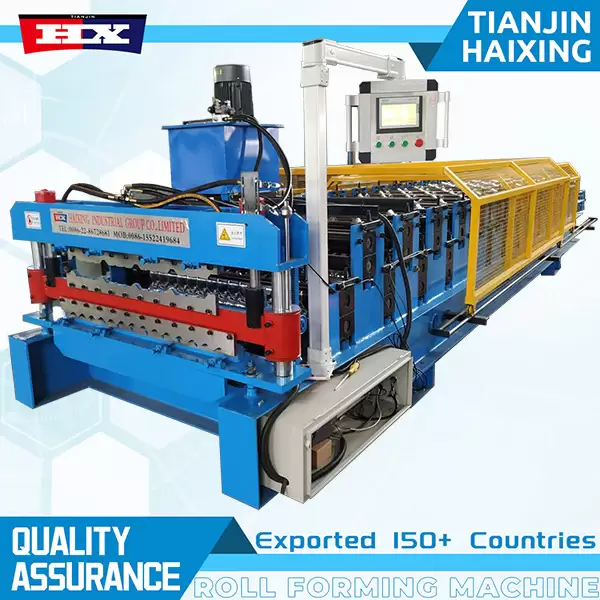

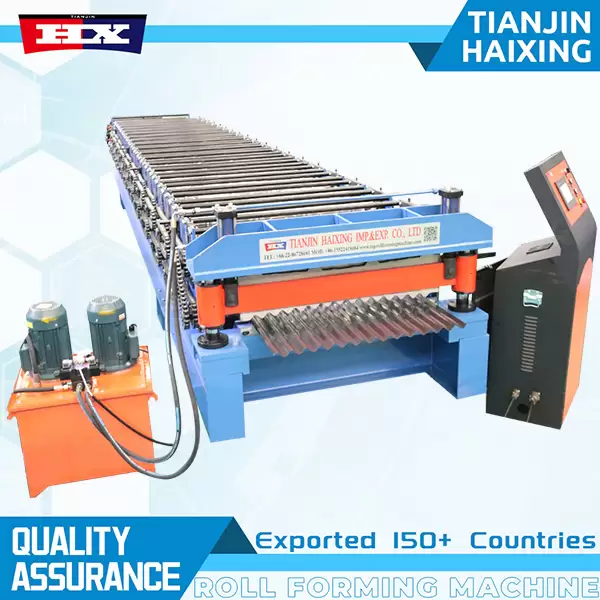

Machine Details
custom metal roll forming
| Formed Material |
GI/GL, PPGI/PPGL |
| Thickness |
0.3-0.8mm |
| Width |
914mm(customized) |
| Decoiler |
Manual decoiler(will give you as free) |
| Roller station |
15+15 rows (As your requirement) |
| Diameter of shaft |
70mm solid shaft |
| Material of rollers |
45# steel, forging with chromium plate 0.05mm |
| Cutter |
Cr12 Mov quenched treatment 58℃-62℃ |
| Power |
7.5+5.5KW |
| Control system: PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language |
English, Spanish, etc.(Support multiple languages) |
| Voltage |
380V 50Hz 3Phase (As your requirement) |
| Forming Speed |
10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
With more than 28 years of experience and over 1,200 installations across the globe, we are recognized as a trusted leader in the industry.
All our machines comply with CE and ISO standards, guaranteeing high quality and safety.
We offer extended warranty plans up to 18 months for additional confidence.
Expert on-site installation and thorough training are provided to support smooth and efficient operation.
About Us
Haixing Tianjin specializes in cutting-edge cold forming technology, providing high-precision machinery tailored for the roofing and construction sectors. With over 28 years of industry experience, we have established a strong reputation and supply reliable, efficient roll forming equipment to clients in more than 150 countries. As a CE and ISO-certified manufacturer, we blend robust Chinese engineering expertise with international quality standards to deliver consistent performance and superior product quality worldwide.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
