Intelligent dual-type, efficient pioneer. TR4 TR5 double layer machine adopts a double-layer independent drive design, which can produce TR4 and TR5 color steel plates at the same time, saving 60% of space. Equipped with an industrial PLC control system, it supports size presets, with a plate output speed of 15 meters per minute and an average daily production capacity of 4,800 meters. The TR4 TR5 double layer machine roller adopts a hard chrome plating process, and the precision of pressing 0.3-0.8mm plates reaches ±2mm, which is suitable for scenes such as steel structure workshops and logistics warehouses. Lifetime maintenance service and 2-year core component warranty help enterprises reduce costs and increase efficiency. TR4 TR5 double layer machine, which complies with CE and green building materials certification, provides a one-stop solution from design to installation to empower green buildings.

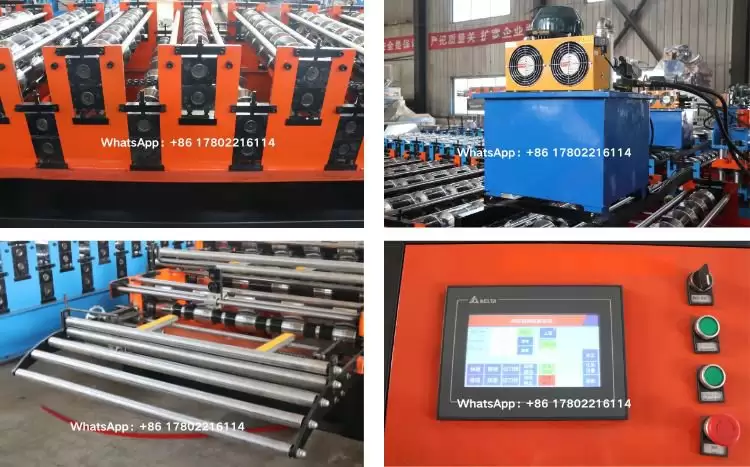

Machine Details

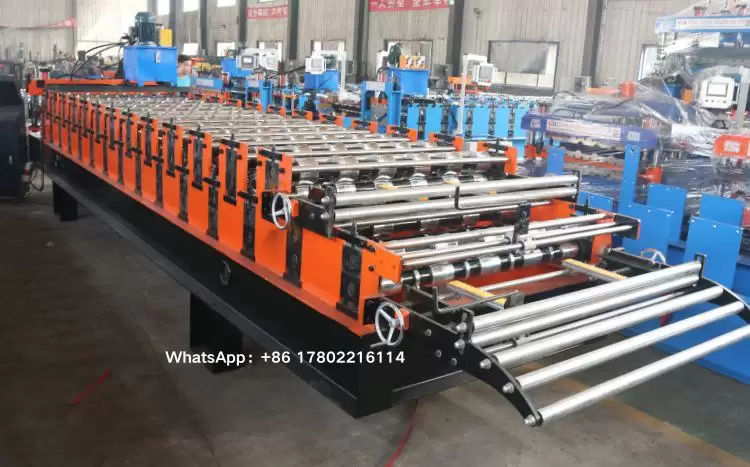

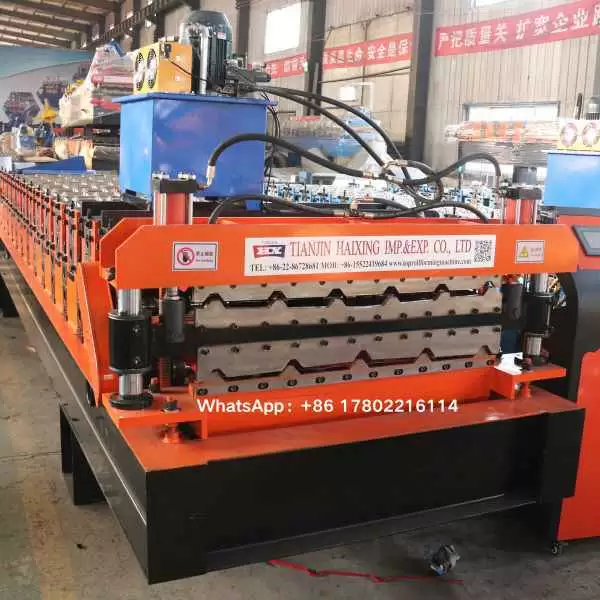

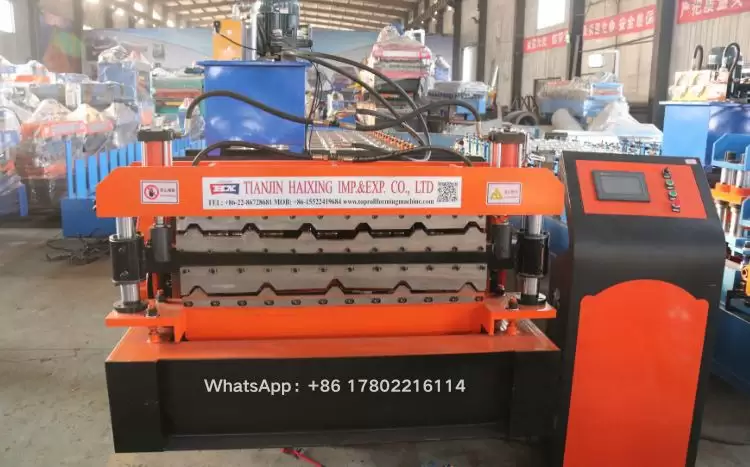

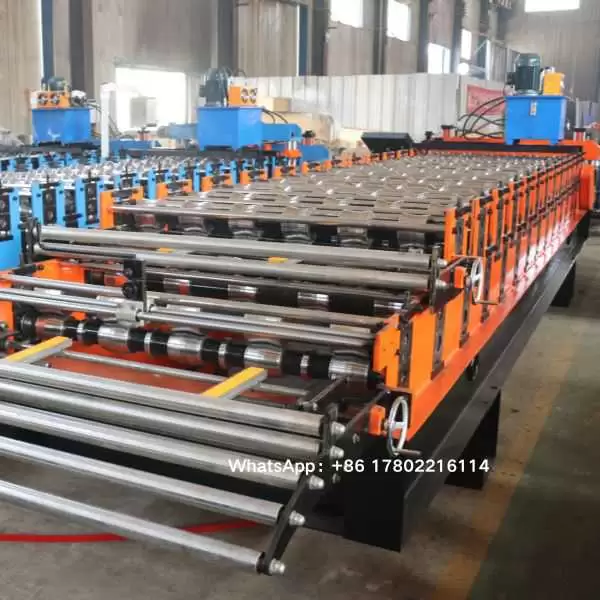

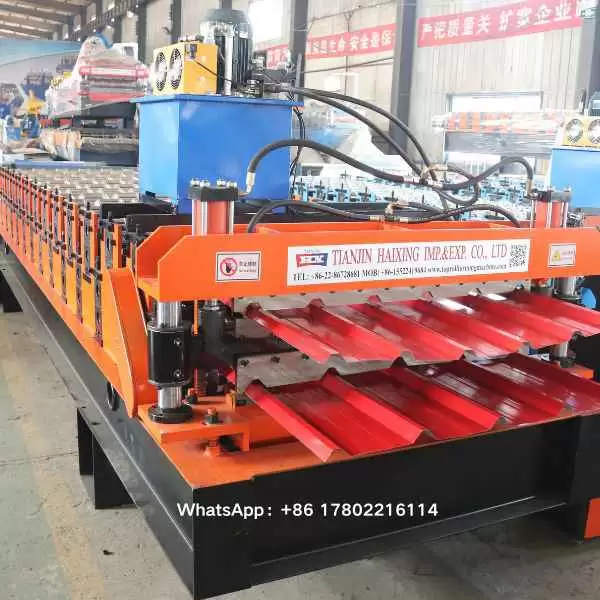

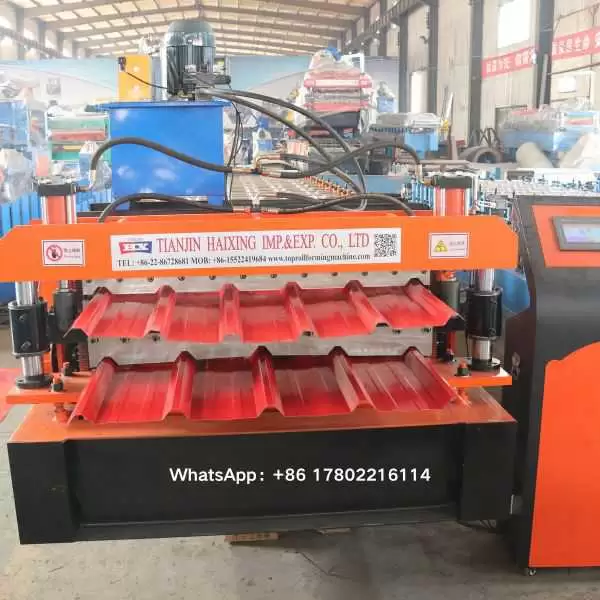

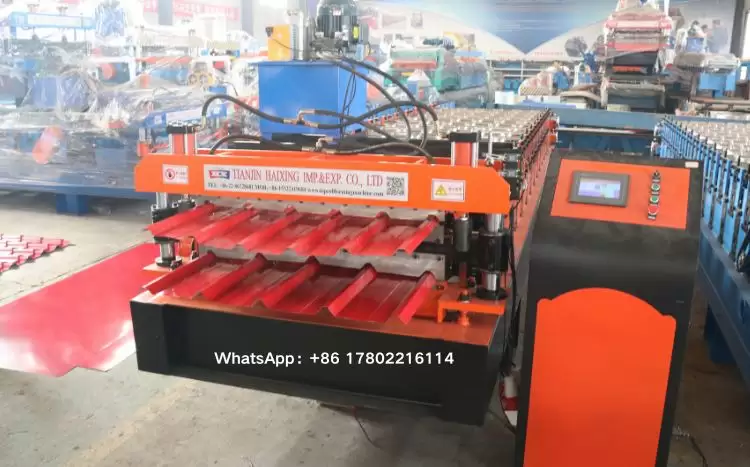

TR4 TR5 double layer machine
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 13+15 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
