It efficiently shapes galvanized steel into high-strength floor deck panels that support concrete slabs in multi-level buildings. WhatsApp +86 17802216114 or email bernice@hx-machinery.com.

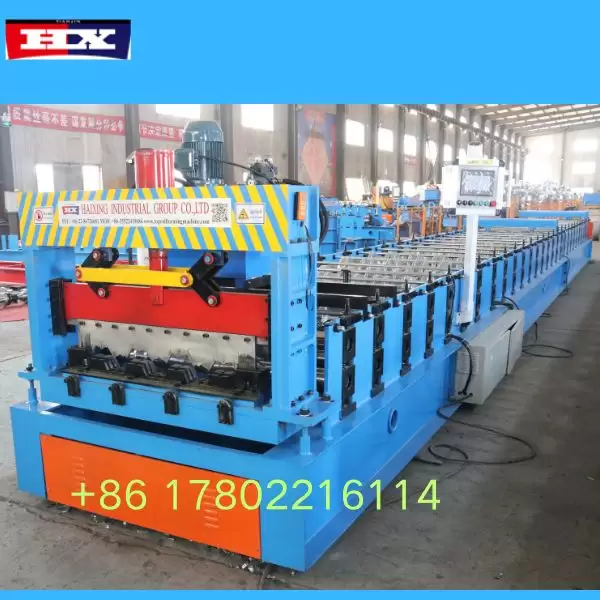

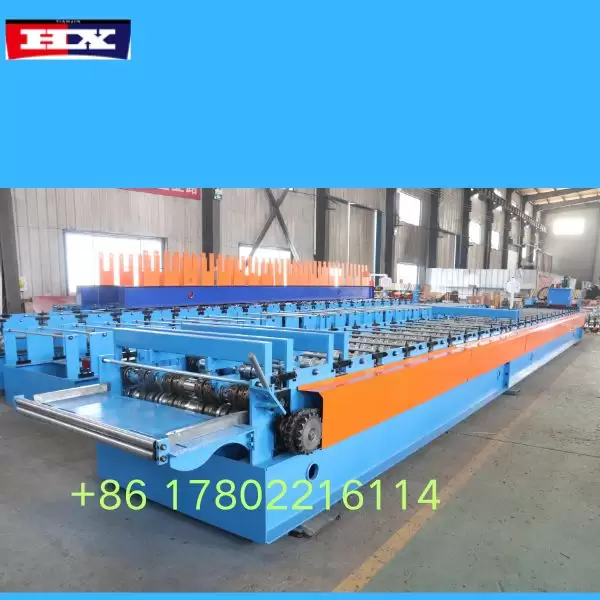

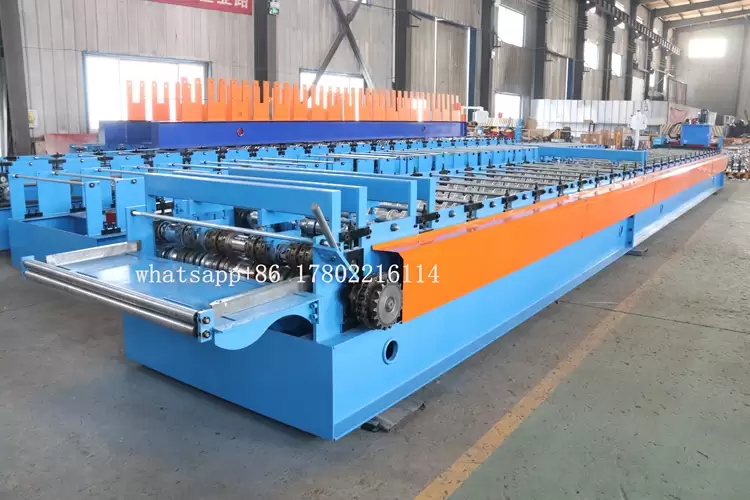

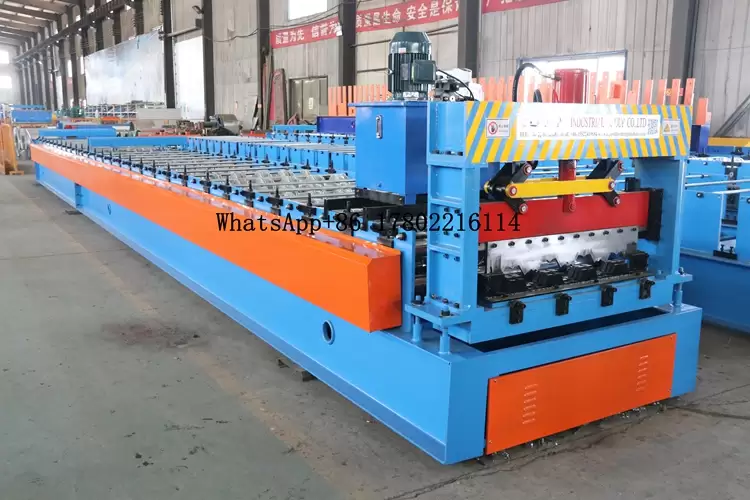

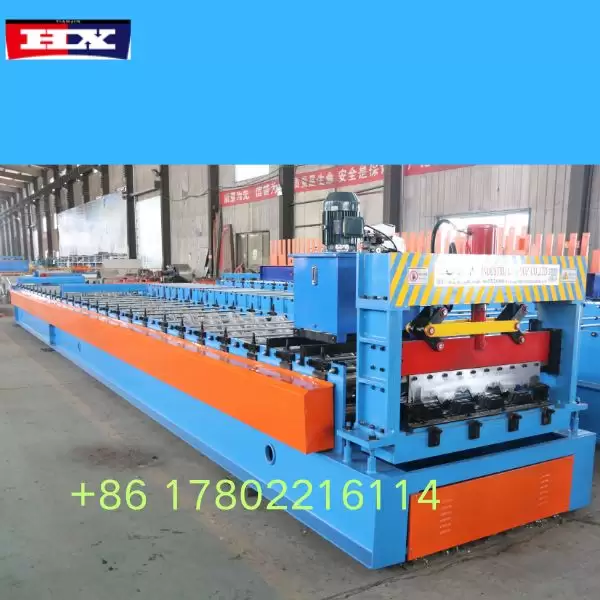

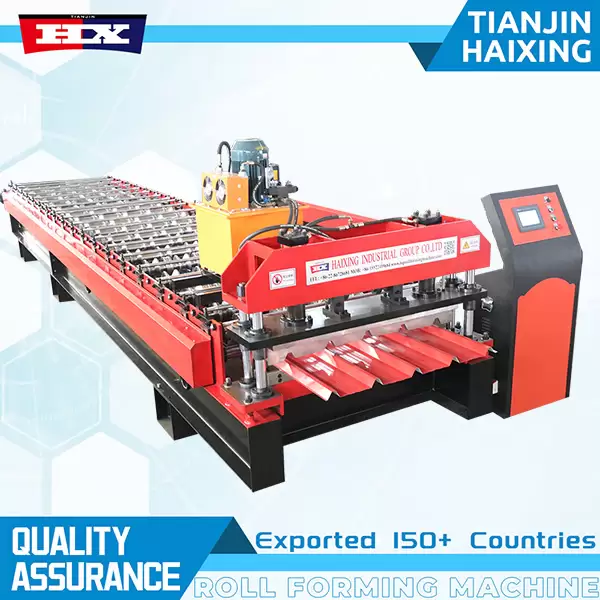

The deck roll former is a specialized machine designed for manufacturing steel floor decking sheets that serve as both reinforcement and formwork in concrete slab construction. By continuously shaping galvanized steel through a series of rollers, it produces uniform and high-strength profiles ideal for use in commercial and industrial buildings. With automated controls, durable components, and accurate forming capabilities, this equipment ensures high production speed, structural reliability, and consistent quality for modern floor systems.

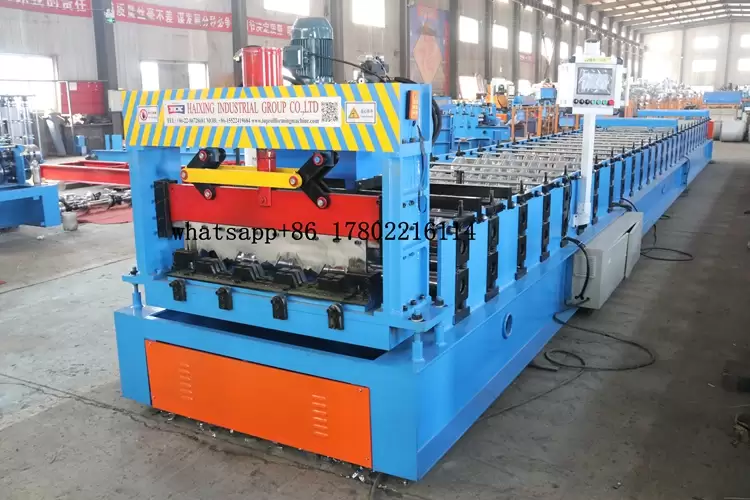

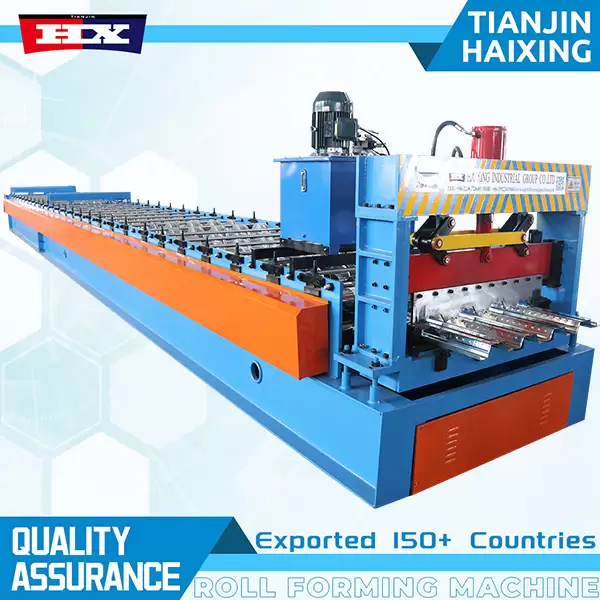

deck roll former
deck roll former
Formed Material
GI/GL, PPGI/PPGL
Thickness
0.5-1.5mm
Width
914mm(customized)
Decoiler
Manual decoiler(will give you as free)
Roller station
22 rows (As your requirement)

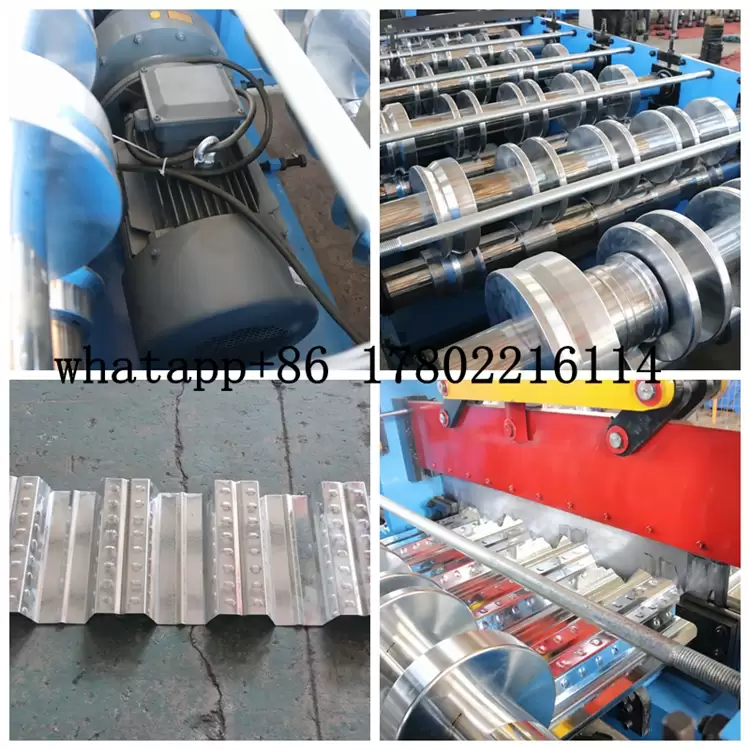

Diameter of shaft
90mm solid shaft
Material of rollers
45# steel, forging with chromium plate 0.05mm
Cutter
Cr12 Mov quenched treatment 58℃-62℃
Power
7.5+5.5KW
Control system: PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.)
Why Choose Us

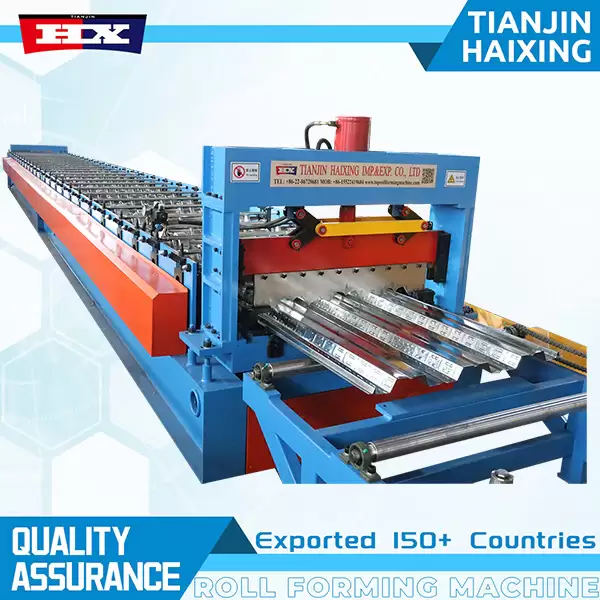

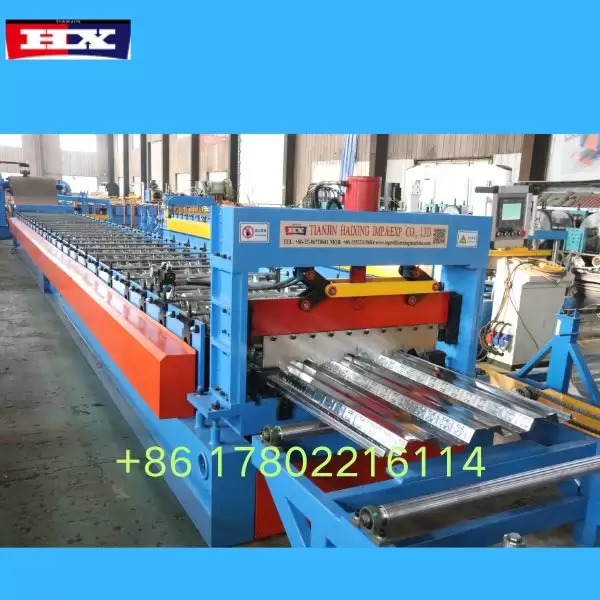

The deck floor roll forming machine is engineered to manufacture steel decking panels used in multi-story building projects. It transforms galvanized coils into precision-formed profiles that provide excellent structural support and serve as stay-in-place concrete formwork. With automated operation and a durable design, it ensures efficient production and consistent output aligned with modern construction standards.
About Us
Haixing Tianjin is a leading manufacturer of cold forming equipment, specializing in high-precision roll forming machines for the roofing and construction sectors. With 28 years of industry experience and customers in over 150 countries, we are known for delivering reliable and efficient solutions. Our machines are CE and ISO certified, combining the strengths of Chinese manufacturing with international standards to ensure consistent, top-tier performance
FAQ:
Q: What types of roof panel forming machines do you mainly produce? A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range? A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment? A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample? A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it? A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
