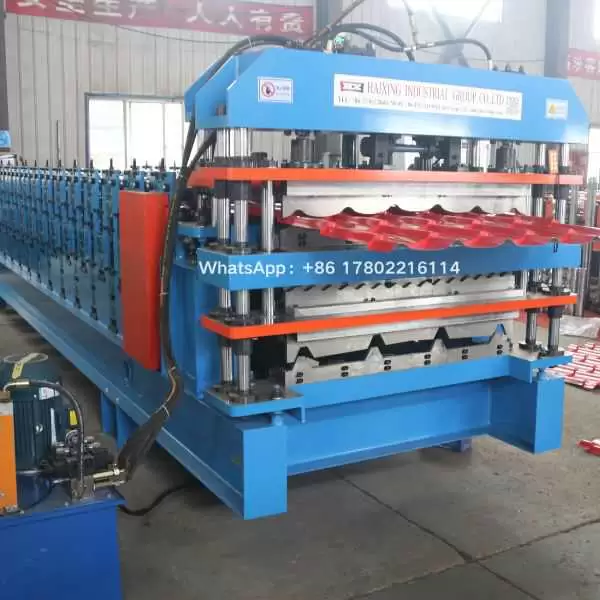

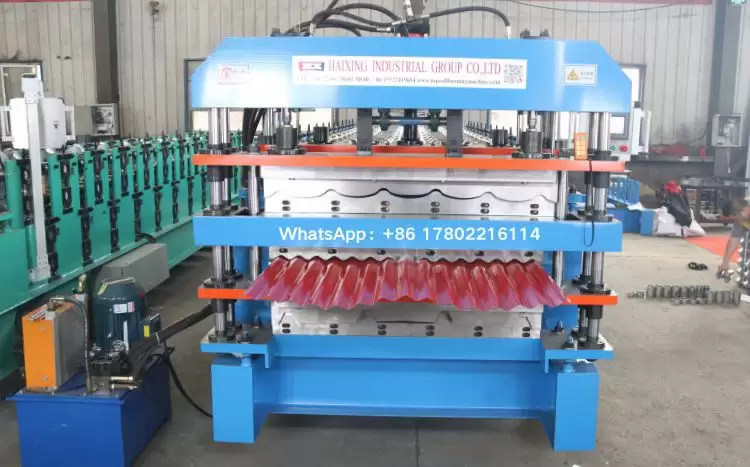

Three layer roof tile machine
Three layer roof tile machine

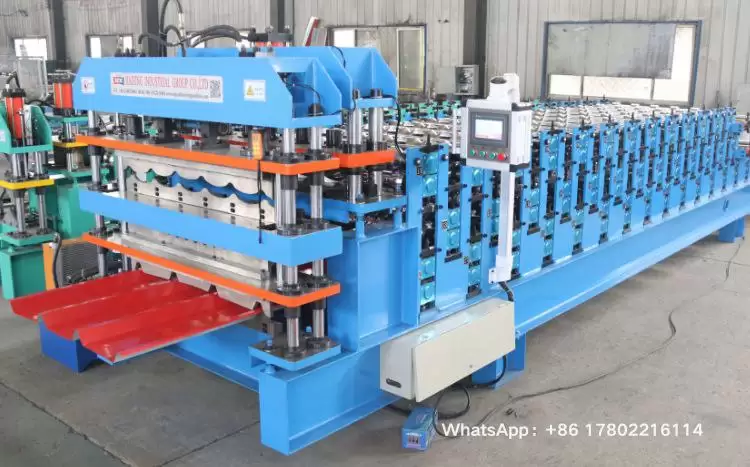

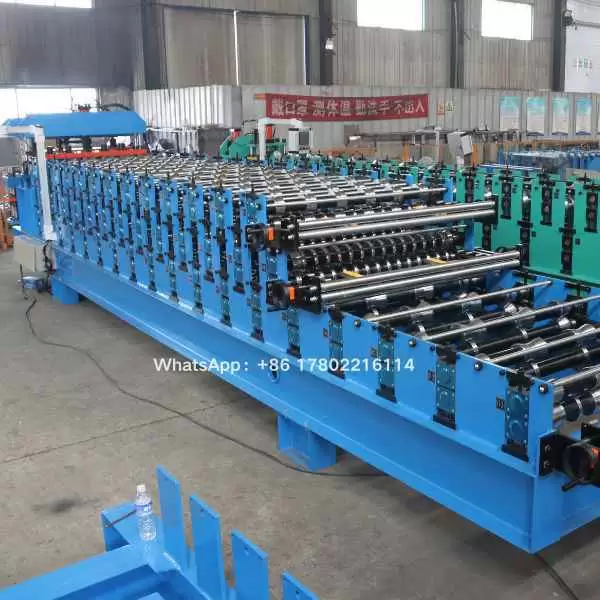

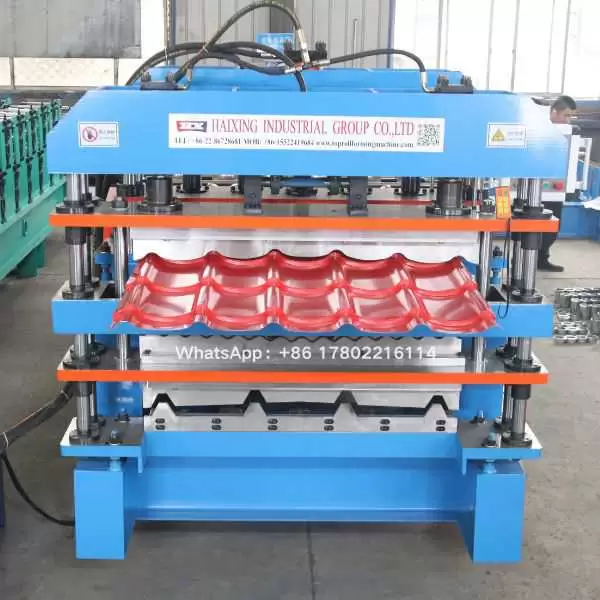

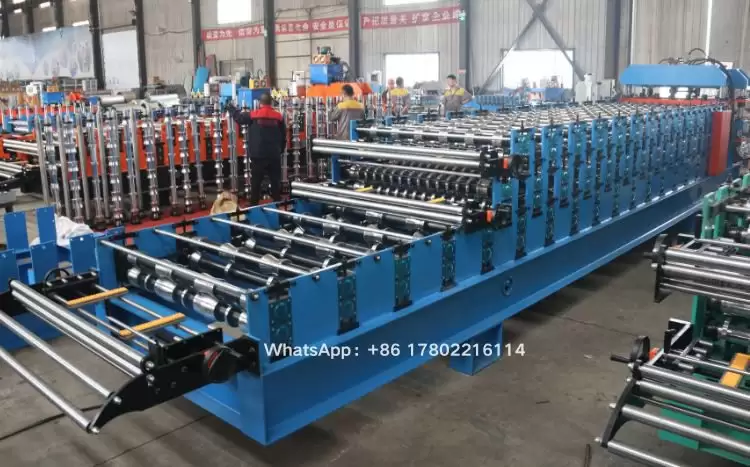

Three layer roof tile machine, one machine can produce three types of panel, sengineered for maximum efficiency, our machine features 45# forged steel rollers with 0.05mm chromium plating for ultra-smooth finishes and extended wear resistance. Precision Cr12MoV quenched cutters deliver flawless cuts across all layers of steel, aluminum, or coated metals. The multi-language PLC control system (English/Spanish, etc.) ensures seamless synchronizatio, rapid operation profile switching, and intuitive operation.
Machine Advantages: Triple-output production slashes operating costs by 40% while conserving factory space. Backed by Haixing Tianjin’s 28+ years of innovation, CE/ISO certifications, and global support network, we provide turnkey solutions—from custom layer configurations to multilingual training and lifetime technical support. Trust our expertise in energy-saving automation and industrial-grade engineering to elevate your competitiveness in construction markets worldwide.

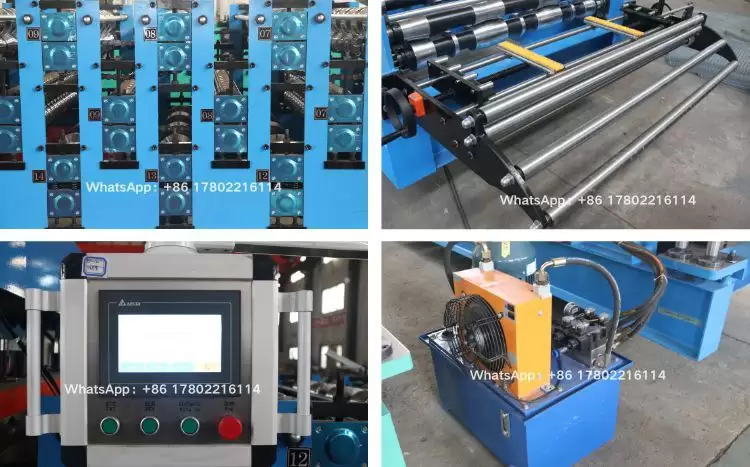

Details
Three layer roof tile machine
|
GI/GL, PPGI/PPGL
|
Thickness: 0.3-0.8mm, Width: 1220mm(customized)
|
|
Hydraulic decoiler
|
Manual decoiler(will give you as free)
|
|
Roller station
|
18＋13＋13 rows (As your requirement)
|
|
Diameter of shaft
|
70mm solid shaft
|
|
Material of rollers
|
45# steel, forging with chromium plate 0.05mm,
|
|
Machine body frame
|
350 H Beams
|
|
Dimension(L*W*H)
|
9400 * 1800 * 2000mm (customize)
|
|
Weight
|
12 Ton
|
|
Automatic
|
Cr12 Mov quenched treatment 58℃-60℃
|
|
Cutting tolerance
|
±1mm
|
|
Motor Power
|
5.5KW
|
|
Hydraulic system power
|
5.5KW
|
|
Votalge
|
380V 50Hz 3Phase(As your requirement)
|
|
Electric Box
|
Delta (As your requirement)
|
|
Language
|
English, Spanish, etc.(Support multiple languages)
|
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|
10-15m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
Why Choose Us
One-stop after-sales system:
1-year whole machine warranty + lifetime technical support, 7×12 hours online response
Cost optimization plan:
1 unit minimum order, discount for bulk orders.
Intelligent production configuration:
PLC fully automatic control system, 1-2 people can operate, reducing labor costs
Long-life mold design:
Cr12MOV mold steel quenching treatment, service life exceeds 500,000 extended meters
About us
Engineering Excellence, Global Trust – Built Over 28 Years
Since 1996, Haixing Tianjin has been at the forefront of designing and manufacturing premium cold roll forming machines for the global construction industry. With over 28 years of engineering expertise, CE and ISO-certified processes, we deliver innovative, high-performance machinery that drives productivity for clients across Europe, the Americas, Africa, and beyond.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?

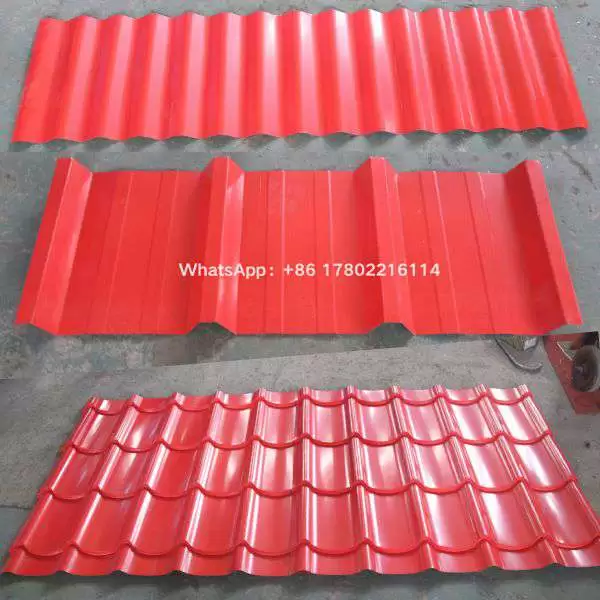

A: Not complete. Suitable for automatic zinc steel trapezoidal corrugated iron sheet roofing glazed tile making machinery three layer roll forming machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the automatic zinc steel trapezoidal corrugated iron sheet roofing glazed tile making machinery three layer roll forming machines can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
