corrugated sheet roll forming machine production line
corrugated sheet roll forming machine production line
corrugated sheet roll forming machine production line, is equipped with 45# forged steel rollers with a chrome plating thickness of 0.05mm, which has excellent wear resistance and perfect surface finish; in addition, it is equipped with Cr12MoV hardened knives to cut galvanized steel, aluminum or pre-painted coils. Multi-language PLC control system enables seamless operation.
Production advantages:

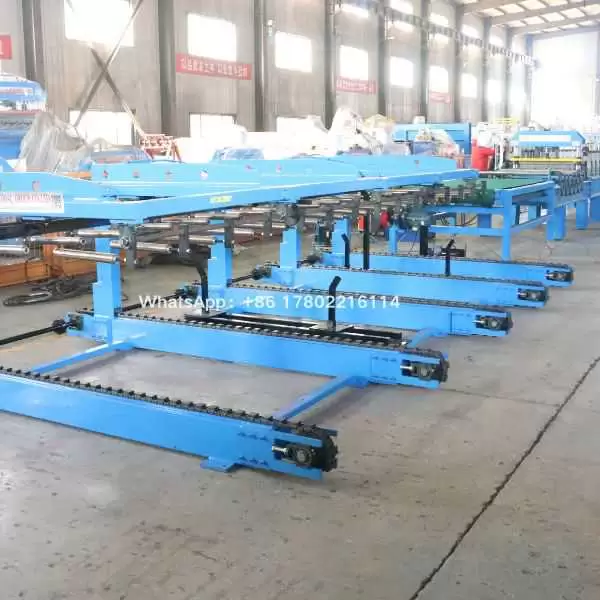

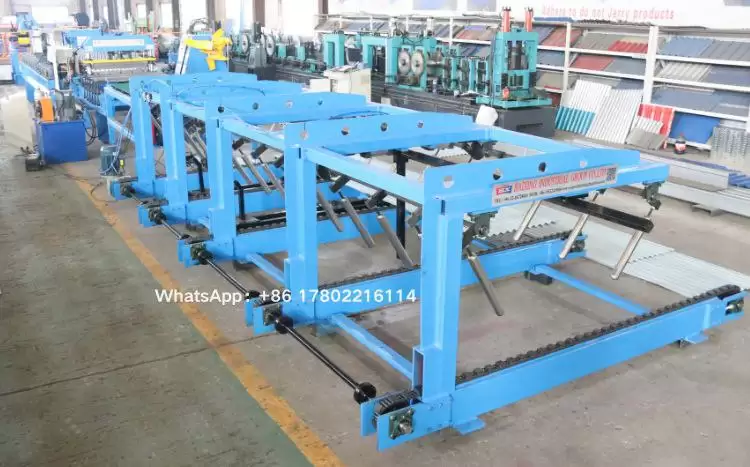

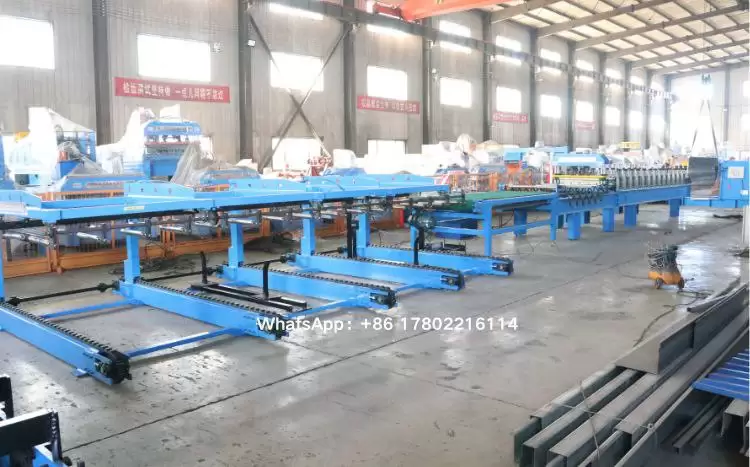

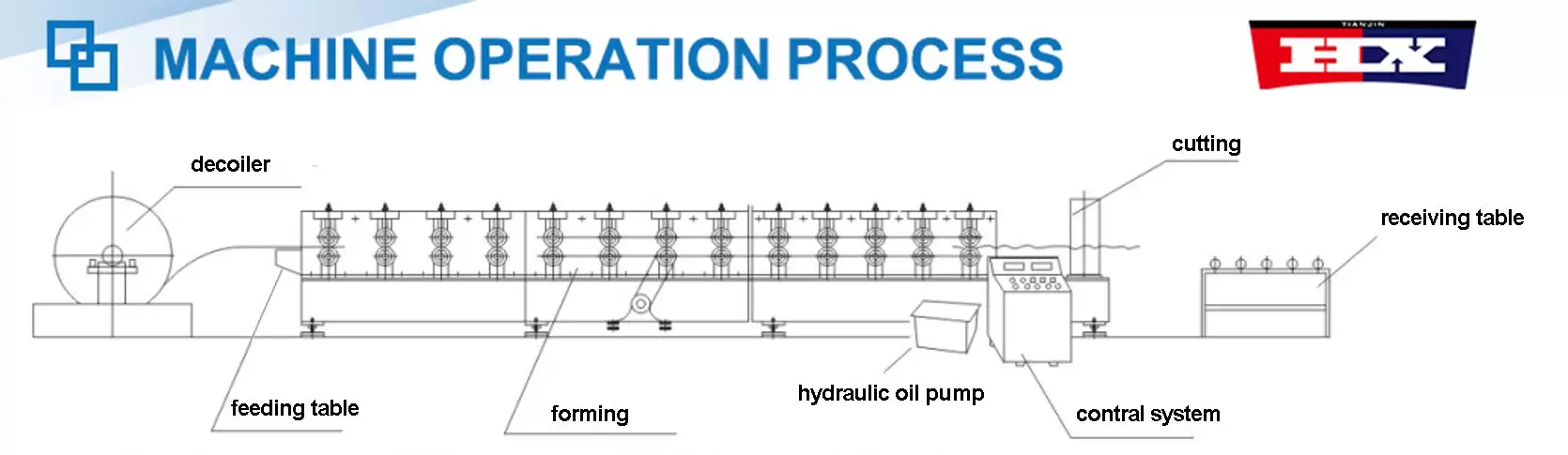

Integrated efficiency: uncoiling → leveling → roll forming → cutting → palletizing
Why choose Haixing Tianjin?
With more than 28 years of professional R&D experience, CE/ISO certification and global services covering more than 150 countries, we are able to provide tailor-made solutions according to your market needs. From custom waveform engineering to multi-language operation training and 24/7 technical support, with industrial-grade reliability. Please trust our end-to-end expertise - advanced automation technology combined with lasting partnerships to help you gain a competitive advantage.

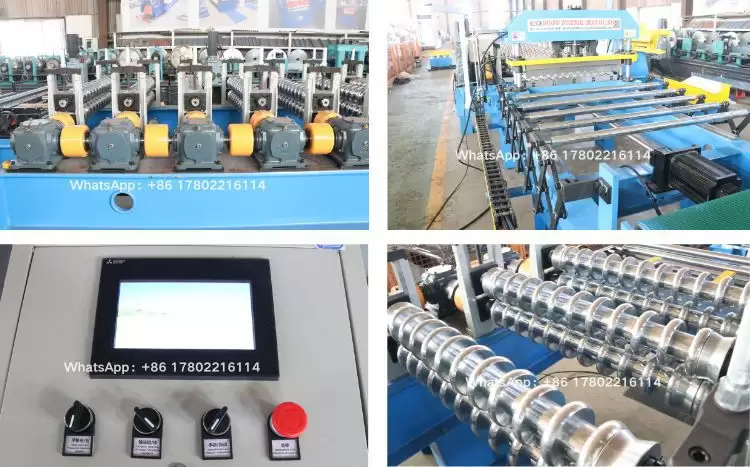

Details Pictures

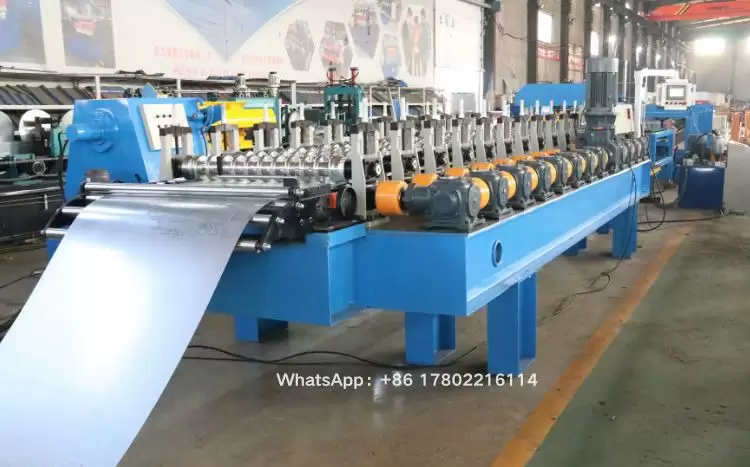

corrugated sheet roll forming machine production line
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.25-0.6mm |
| Width | 1200mm(customized) |

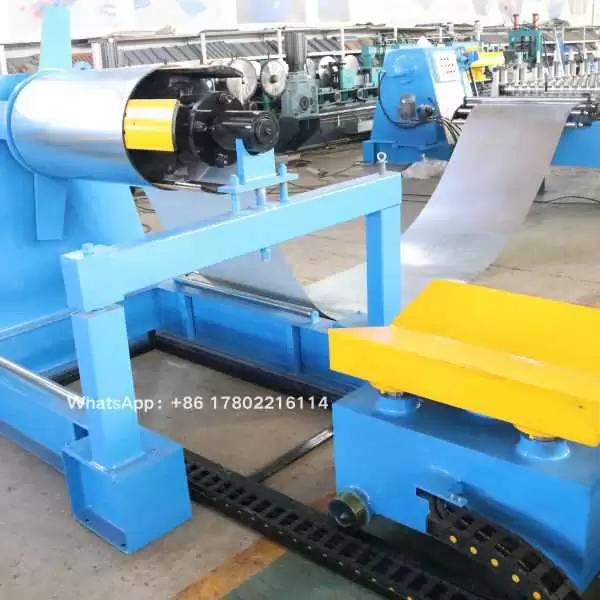

| Decoiler | Manual decoiler(will give you as free) |

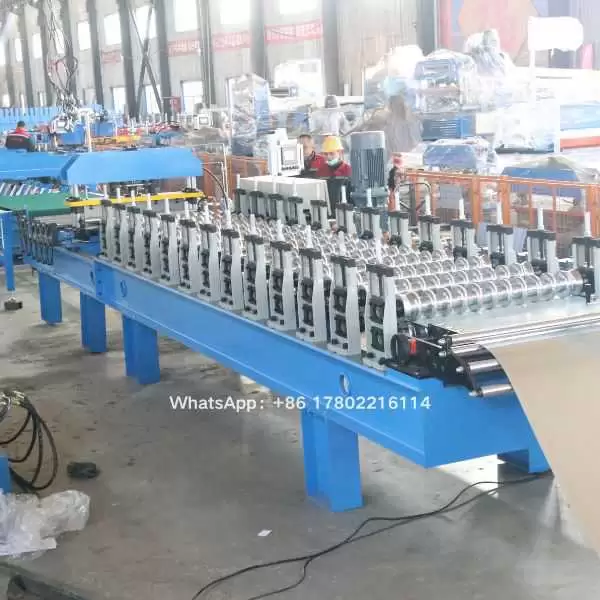

| Roller station | 14 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 10-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
28 Years of Experience with 1200+ Installations Worldwide
Provide CE, ISO Certifications
18 Months Warranty Extension Options
On-Site Commissioning Available
About Us

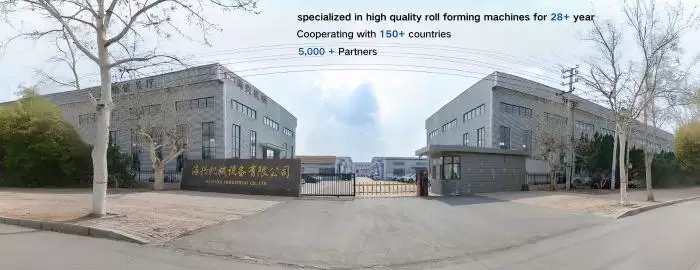

We provide precision engineering solutions in cold forming technology. For over 28 years, Haixing Tianjin has been a leader in manufacturing the highest quality cold forming machines, serving customers in over 150 countries. As a CE and ISO certified gold supplier, we combine Chinese engineering excellence with global operating standards to deliver roofing solutions.
FAQ:
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: It is equipped with a PLC fully automatic control system as standard, and only 1-2 people are required to operate it (feeding + monitoring). High-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is its service life?
A: The mold is made of Cr12MOV mold steel, with surface quenching treatment. Under normal use, the service life can reach more than 500,000 extended meters, and it supports renovation and maintenance.
Q: Does it support customized versions? How long is the mold development cycle?
A: It supports customized versions according to drawings. The mold development cycle is about 20-30 days (the complexity of the drawings needs to be confirmed). A 3D design solution can be provided first.
Q: Can the voltage and frequency of the equipment adapt to our country?
A: It supports global voltage customization (220V/380V/415V, 50Hz/60Hz), and it will be debugged according to the customer's national standards before leaving the factory.
Q: What is the noise and energy consumption of the equipment?
A: Operating noise <85dB, energy consumption is about 15-25kW/h (depending on the model configuration), equipped with energy-saving motor.
Q: What is the minimum order quantity? Can you accept sample orders?
A: The minimum order is 1 unit, sample orders are supported (additional mold debugging costs must be borne), and bulk orders can enjoy discounts.
Q: What is the payment method?
A: General terms: 30% advance payment, 70% paid before shipment, support T/T, L/C, etc.
