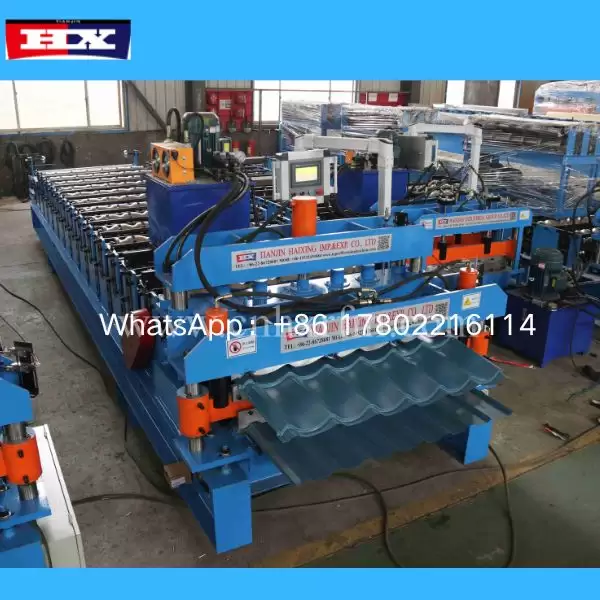

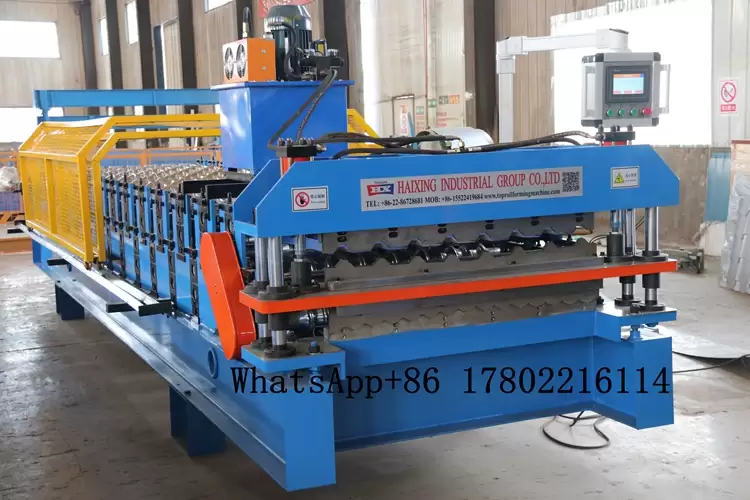

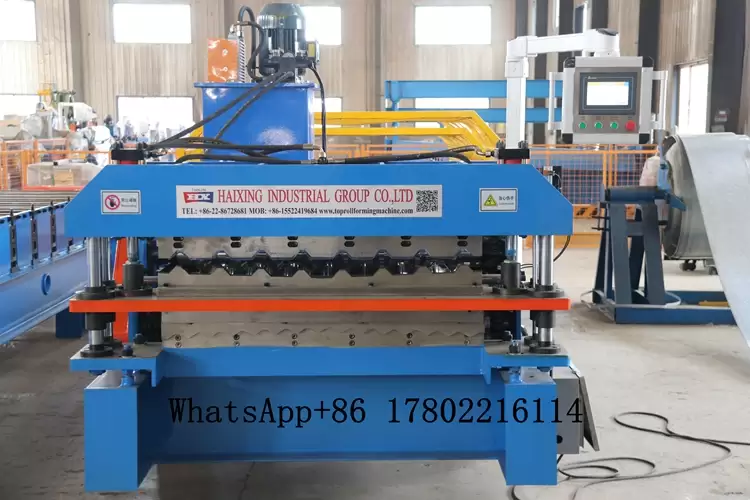

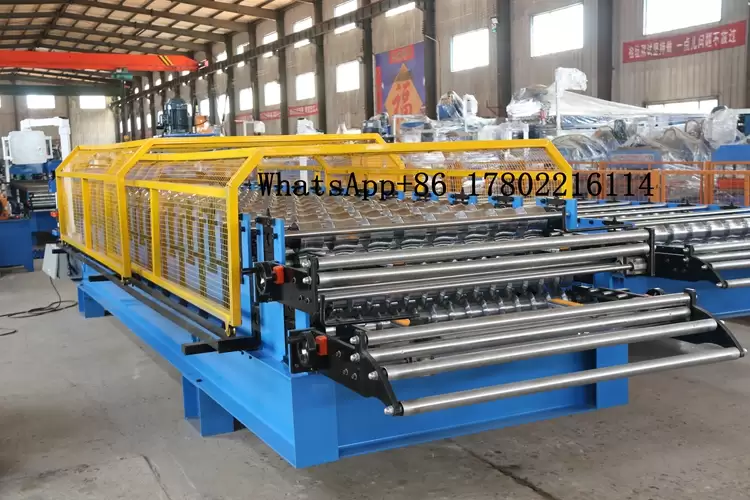

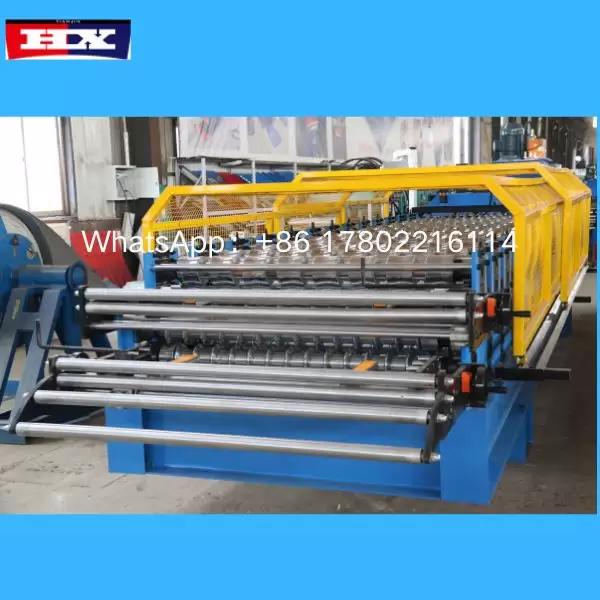

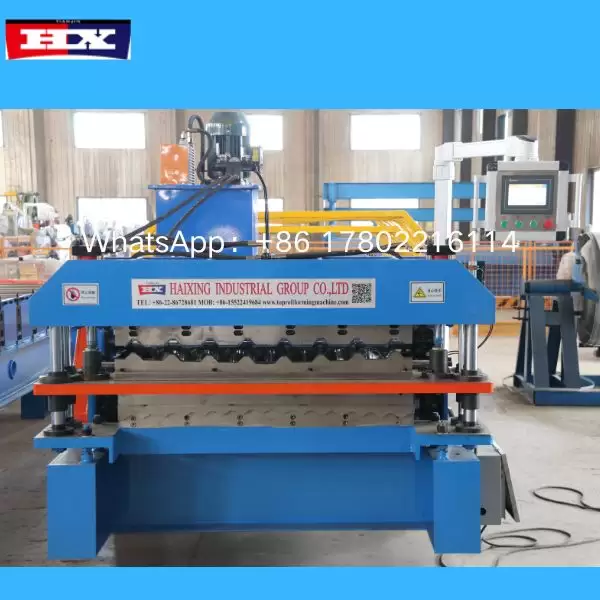

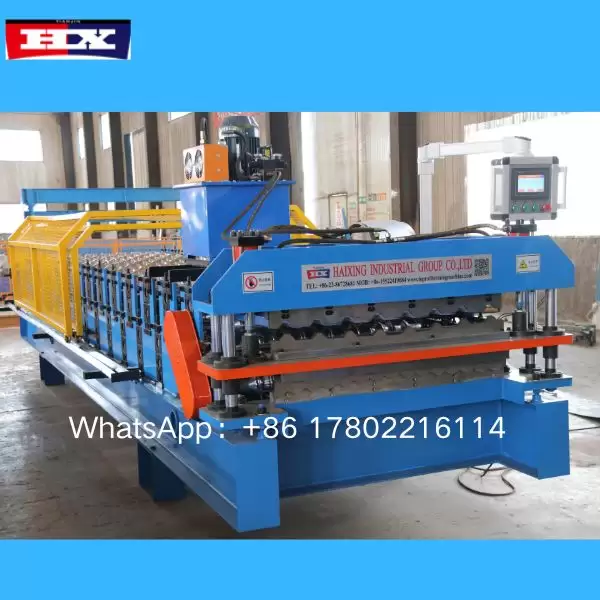

Aluminium Trapezoidal Galvanized Roofing Sheet Roller Machine
The corrugated roll machine stands as a cornerstone of modern metal forming, merging precision engineering with high-performance functionality to redefine industrial production standards. Designed to transform flat metal sheets—whether steel, aluminum, or other alloys—into robust, uniformly ridged corrugated profiles, this advanced system operates through a meticulously calibrated sequence of rolling dies. Each die in the assembly works in seamless harmony, gradually shaping the metal with calculated pressure and bending to create consistent wave patterns, from subtle ridges to deep grooves, tailored to specific structural or aesthetic needs.
Beyond its core forming capability, the machine excels in efficiency and reliability: it enables continuous, high-speed production runs, minimizing downtime while ensuring every panel meets strict dimensional tolerances. This makes it indispensable across industries, particularly in construction, where its output—durable roofing, weather-resistant wall cladding, and sturdy structural panels—forms the backbone of resilient buildings and infrastructure. Engineered to balance power with precision, it not only streamlines manufacturing workflows but also upholds the integrity of the final product, ensuring longevity, weather resistance, and structural strength. In essence, the corrugated roll machine is more than equipment; it’s a catalyst for turning raw metal into the building blocks of enduring, high-performance structures.
Aluminium Trapezoidal Galvanized Roofing Sheet Roller Machine
Aluminium Trapezoidal Galvanized Roofing Sheet Roller Machine
| Formed Material |
GI/GL, PPGI/PPGL |
| Thickness |
0.3-0.8mm |
| Width |
914mm(customized) |
| Decoiler |
Manual decoiler(will give you as free) |
| Roller station |
15+13 rows (As your requirement) |
| Diameter of shaft |
70mm solid shaft |
| Material of rollers |
45# steel, forging with chromium plate 0.05mm |
| Cutter |
Cr12 Mov quenched treatment 58℃-62℃ |
| Power |
7.5+5.5KW |
| Control system: PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language |
English, Spanish, etc.(Support multiple languages) |
| Voltage |
380V 50Hz 3Phase (As your requirement) |
| Forming Speed |
10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Why Choose Us
With over 28 years of industry expertise and a global footprint of 1,200+ successful installations, we’ve cemented our status as a preeminent authority in roll forming technology. Every piece of our equipment is engineered to exceed stringent CE and ISO benchmarks, ensuring unwavering quality and foolproof operation in every scenario. To further underscore our commitment to your peace of mind, we offer extended warranty coverage of up to 18 months, standing firmly behind the reliability of your investment. And to ensure your machinery operates at peak potential from day one, each unit comes paired with professional on-site commissioning and hands-on operator training—because excellence in performance begins with excellence in preparation.
About Us
Haixing Tianjin emerges as an industry-leading provider of state-of-the-art cold forming technology, offering exquisitely engineered machinery crafted exclusively for the roofing and construction domains. Boasting a distinguished 28-year legacy, we’ve cultivated an enduring global reputation, serving clients across 150+ countries with roll forming systems that blend unwavering reliability with exceptional efficiency. Certified to meet rigorous CE and ISO standards, we seamlessly integrate China’s formidable manufacturing capabilities with world-class quality benchmarks—ensuring every product in our portfolio delivers consistent, high-caliber performance and unparalleled excellence.
FAQ:
Q: What types of roof panel forming machines do you mainly produce?
A: We focus on metal roof panel roll forming machines, including vertical lock seam panels, corner panels, corrugated panels, antique glazed tiles and other 20+ types of equipment, supporting customized molds.
Q: What raw materials are suitable for the machine? Thickness range?
A: Mainly processed galvanized sheets, color-coated sheets, aluminum alloy sheets, material thickness can usually be adjusted according to demand.
Q: What is the production speed of the equipment?
A: The standard model speed is 10-15 meters/minute, and the high-end model can reach 20 meters/minute, depending on the complexity of the pattern.
Q: Can you provide a trial video or sample?
A: We can provide real-time trial videos and molded samples for delivery. If you need on-site inspection, please make an appointment to visit the factory.
Q: Is the equipment fully automatic or semi-automatic? How many people are needed to operate it?
A: Standard PLC fully automatic control system, only 1-2 people are needed to operate (feeding + monitoring), and high-end models can be connected to automatic feeding racks.
Q: What is the material of the mold? What is the service life?
A: The mold is made of Cr12MOV mold steel, surface quenching treatment, and the service life can reach more than 500,000 extended meters under normal use, and it supports renovation and maintenance.
Q: Does it support customized version? How long is the mold development cycle?
A: Support customized version according to drawings, the mold development cycle is about 20-30 days (need to confirm the complexity of the drawings), and a 3D design plan can be provided first.
Q: Can the equipment voltage and frequency adapt to our country?
A: Support global voltage customization (220V/380V/415V, 50Hz/60Hz), and will be debugged according to the customer's national standards before leaving the factory.
