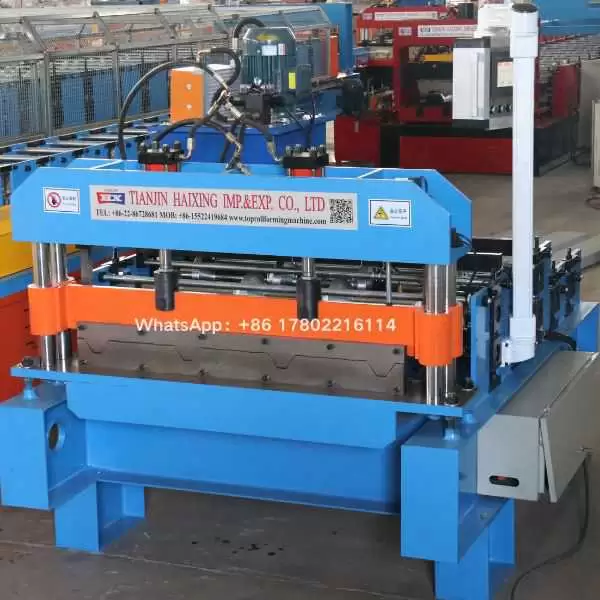

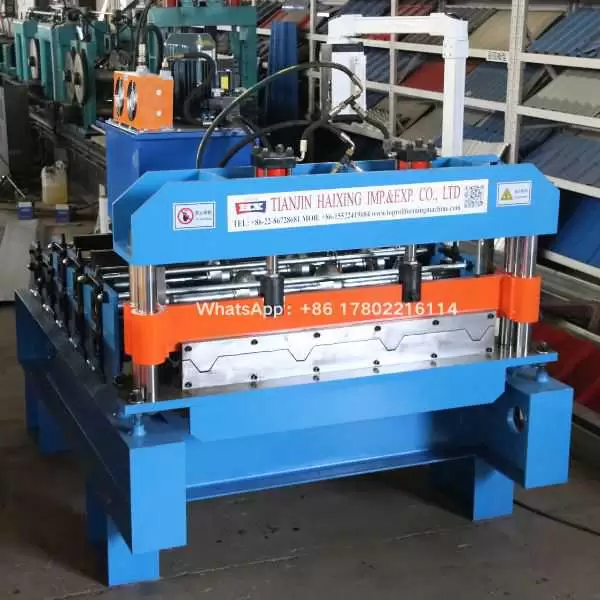

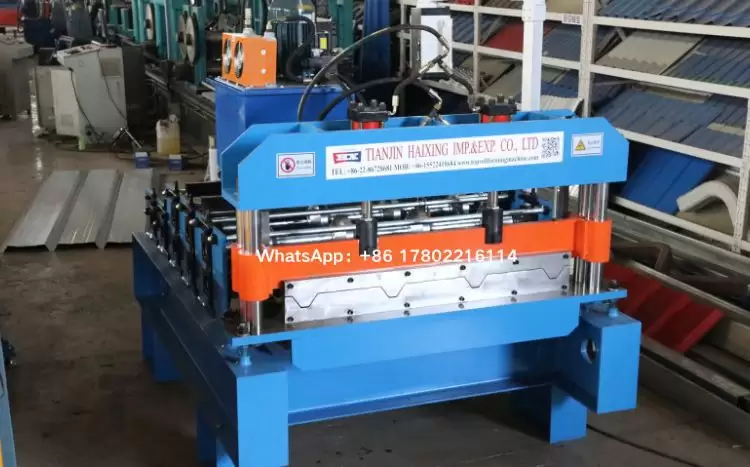

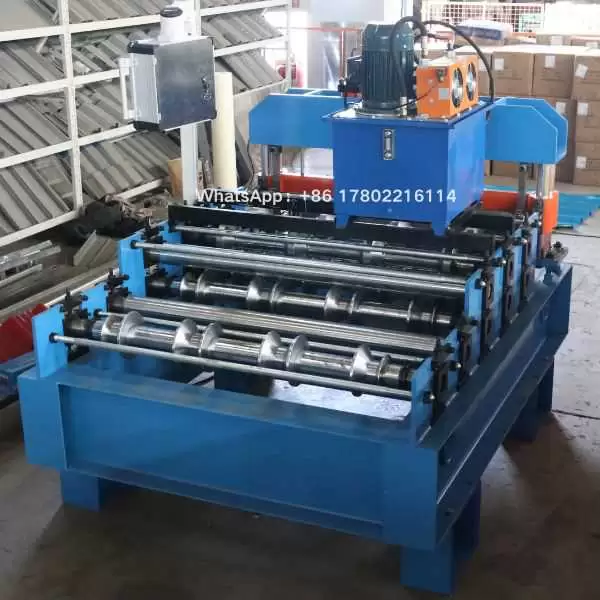

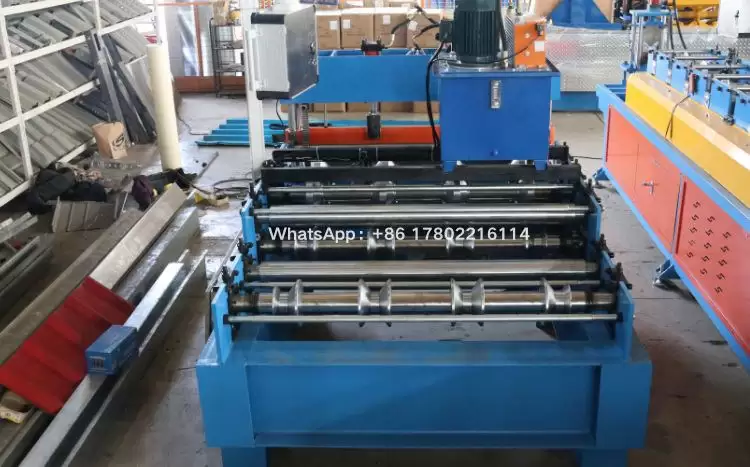

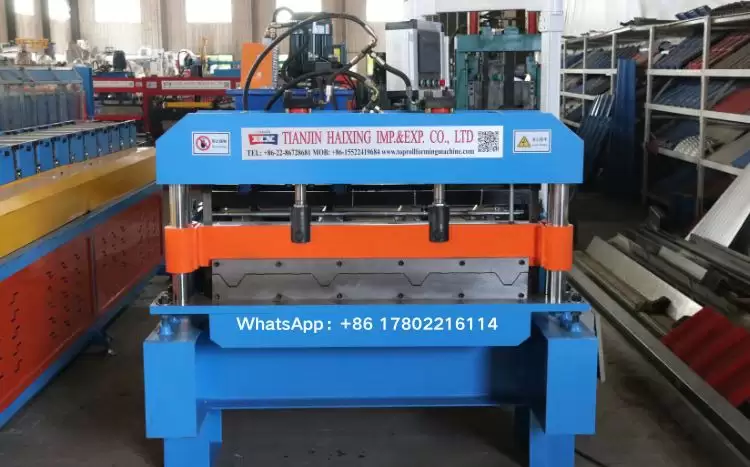

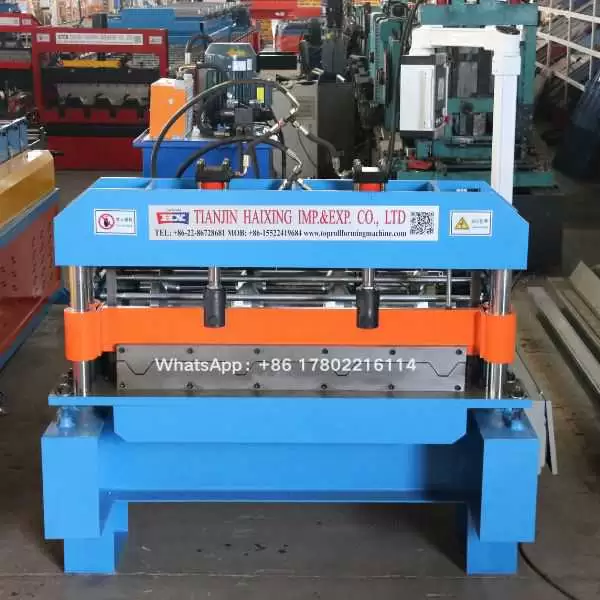

pv4 metal curving machine
pv4 metal curving machine

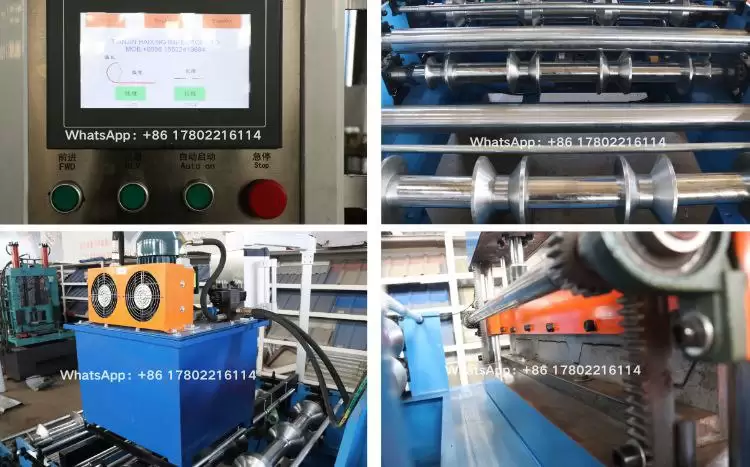

pv4 metal curving machine, engineered for arched roofing, and large-span structures, our machine transforms steel/aluminum coils into precision arches with consistent radii. Featuring 45# forged steel rollers with 0.05mm chromium plating for exceptional wear resistance and smooth forming, paired with Cr12MoV quenched cutters delivering clean, distortion-free cuts on thick-gauge materials.
Machine Details
pv4 metal curving machine
|
machine size |
520mm*520mm*1200mm |
|
Feeding width |
914-1250mm |
|
Equipment weight |
0.5T |
|
Material of shaft |
45#steel adjustable treatment |
|
Out diameter of shaft |
φ70mm |
|
Material of roller |
Cr12MoV, hard chromize coated HRC58-60°C |
|
Number of forming rollers |
3-4 rows |
|
Main frame |
300 H steel |
|
Thickness of medium plate |
16mm |
|
Thickness of formed steel |
0.3-0.8mm |
|
Main motor power |
4 KW |
|
Brand name |
HX |
|
Forming speed |
8000-10000mm/min |
|
Feeding plate thickness |
0.25-0.8mm |
|
Removable or not |
Removable type with 4 wheels |
Why Choose Us
20+ years of industry development:
Focusing on the research and development of metal roof panel molding equipment, serving customers from more than 150 countries
Full process customization capability:
20+ standard version + customization of drawings, mold development cycle ≤30 days
Global adaptability design:
Supports customization of 220V-415V voltage/50-60Hz frequency, standard CE certification
Quick response service:
72 hours of proofing, 35 days of delivery of standard models, 24 hours of quotation feedback

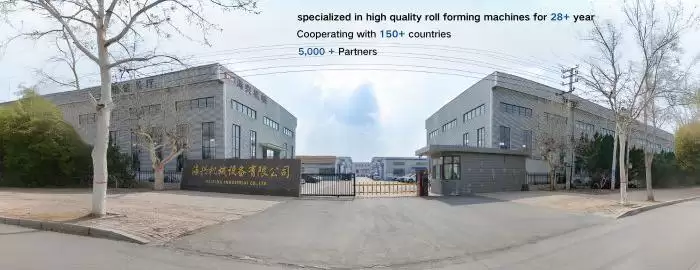

About us
Engineering Excellence, Global Trust – Built Over 28 Years
Since 1996, Haixing Tianjin has been at the forefront of designing and manufacturing premium cold roll forming machines for the global construction industry. With over 28 years of engineering expertise, CE and ISO-certified processes, we deliver innovative, high-performance machinery that drives productivity for clients across Europe, the Americas, Africa, and beyond.
FAQ:
Q: Is the equipment internationally certified?
A: Standard CE and ISO certification.
Q: Which countries are currently exporting?
A: The products have been exported to 150 countries including Europe, Middle East, Africa, South America, etc., and are familiar with local customs clearance and installation standards.
Q: Can you provide local client cases or reference projects?
A: Anonymous project videos/pictures can be provided. If you need to refer to them in the same region, you need to communicate in advance and obtain customer consent.
Q: What are your advantages?
A: ① 28 years of industry experience; ② Support 72-hour fast proofing;
Q: What is the minimum order quantity? Can you accept sample orders?
A: 1 unit minimum order, support sample orders (need to bear additional mold debugging costs), and bulk orders can enjoy discounts.
Q: What is the payment method?
A: General terms: 30% advance payment, 70% paid before shipment, support T/T, L/C, etc.
