ridge cap machine
ridge cap machine

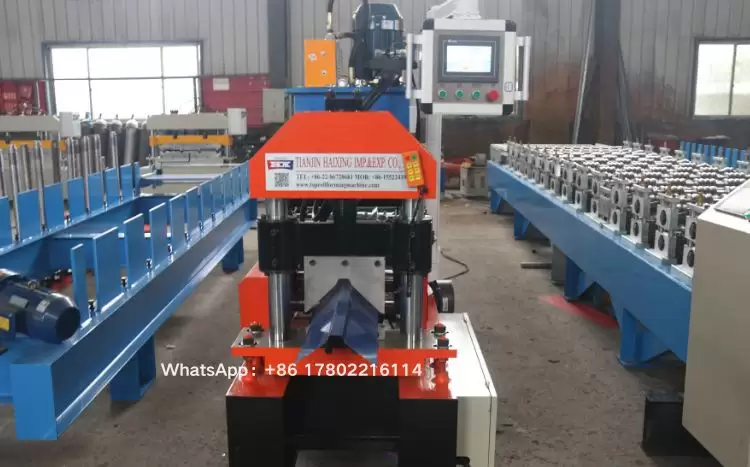

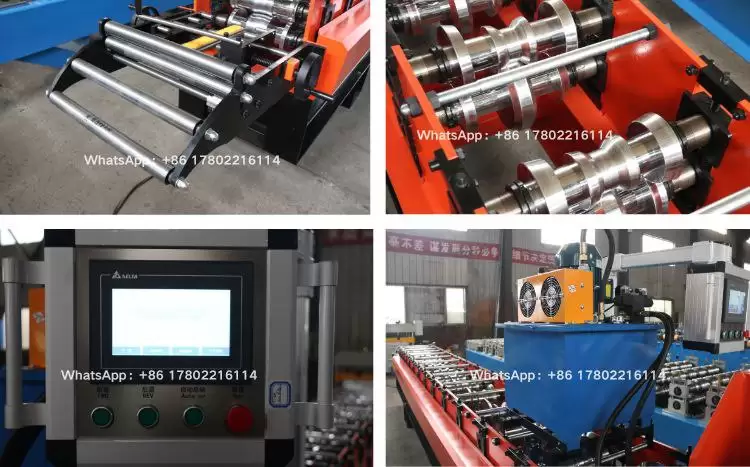

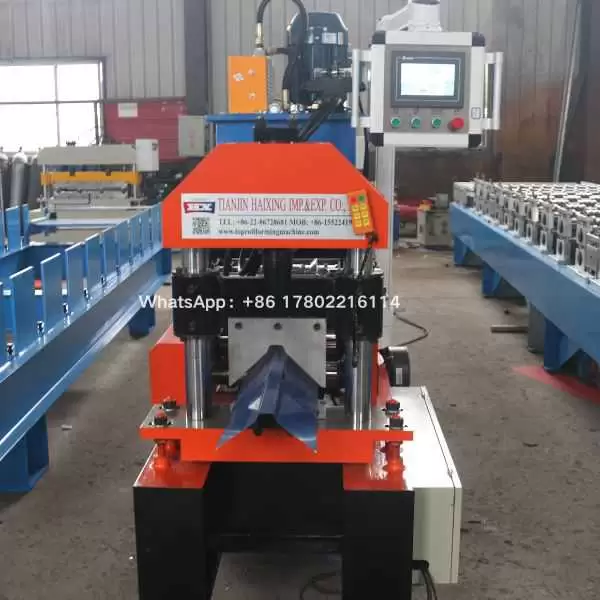

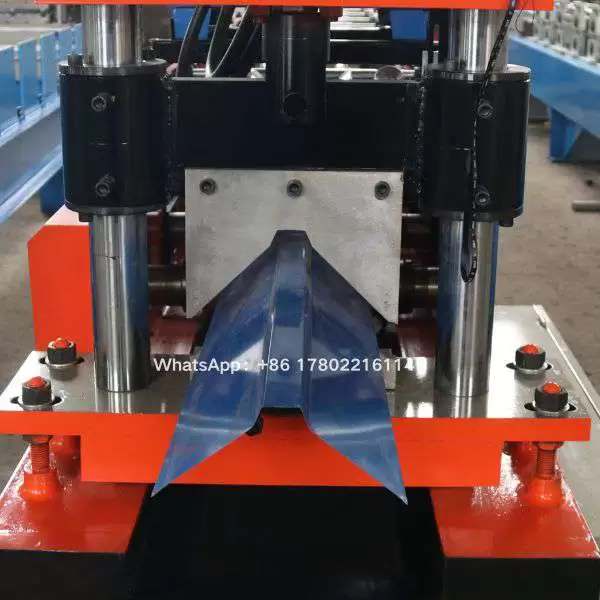

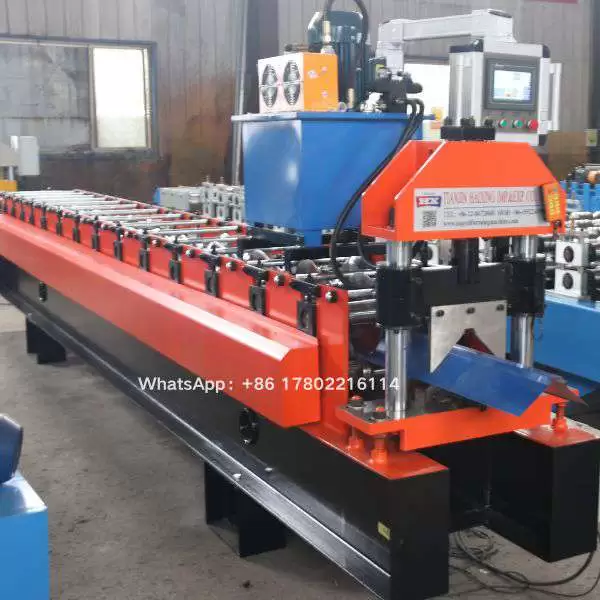

ridge cap machine,the machine features 45# forged steel rollers with 0.05mm chrome plating to prevent wear and ensure consistent bends in high volume production. Cr12MoV hardened cutters provide clean bevel cuts on galvanized steel, aluminum, or pre-painted coils. Multi-language PLC control system (English/Spanish, etc.) ensures precision, easy setup, and real-time monitoring.

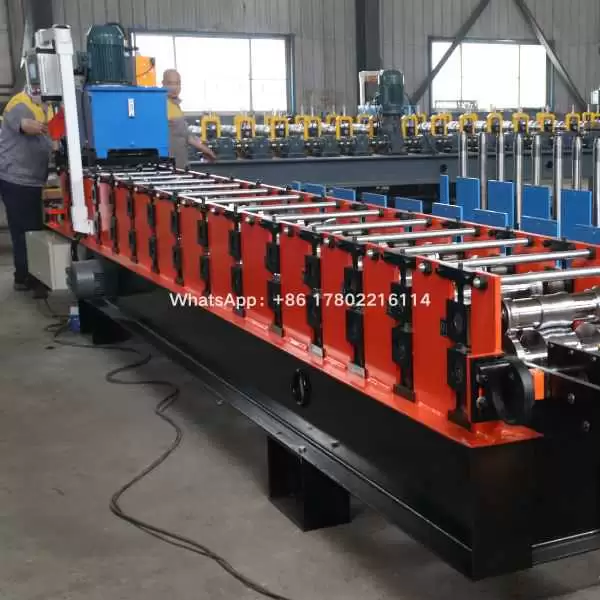

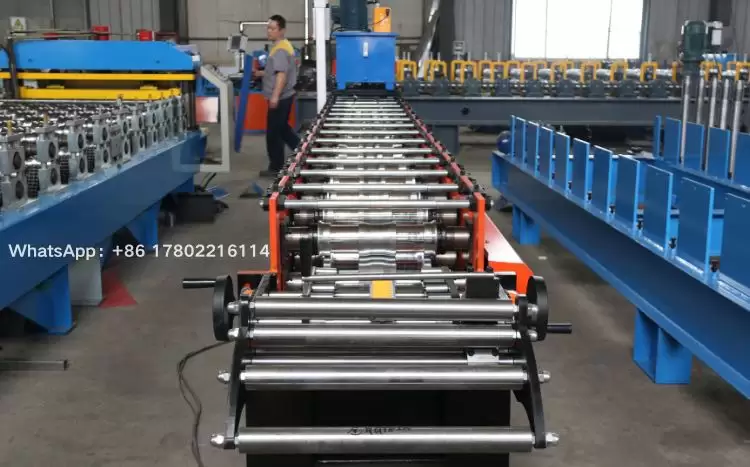

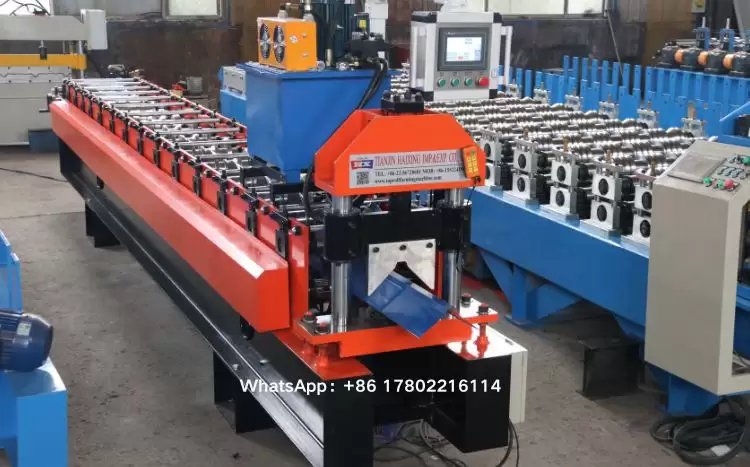

The complete ridge cap roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the ridge cap machine produces it automatically. The machines are easy to operate and running stable.
Details
ridge cap machine
|
Product name
|
ridge cap roll forming machine
|
|
Size
|
6800*900*1900mm
|
|
Weight
|
2800KGS
|
|
Voltage
|
380V/50HZ/3PH
|
|
Motor Power
|
4KW
|
|
Hydraulic Power
|
4KW
|
|
Curved Thickness
|
0.3-0.8mm
|
|
Feed width
|
312mm
|
|
Working Speed
|
5-6m/min
|
|
Forming Steps
|
3 steps
|
|
Painted Color
|
Blue or Customization
|
Why Choose Us
**Spare parts supply**: ensure the continuous operation of old models without worries.
**48-hour load test before delivery**: each machine can be delivered only after passing the actual test.
**Modular structure**: convenient for transportation and installation, flexible workshop layout.
**Free operation training**: provide bilingual equipment operation manuals and video tutorials in Chinese and English.
**Transparent price without hidden costs**: FOB/CIF quotation is clear, and no later price increase is allowed.
About us
Engineering Excellence, Global Trust – Built Over 28 Years

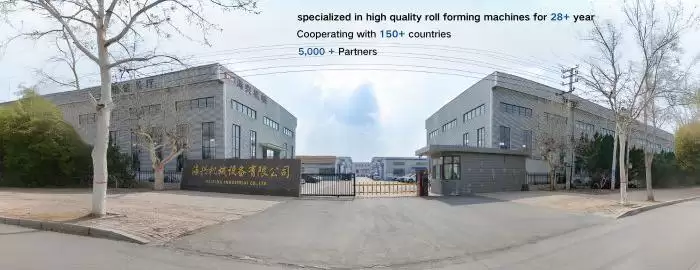

Since 1996, Haixing Tianjin has been at the forefront of designing and manufacturing premium cold roll forming machines for the global construction industry. With over 28 years of engineering expertise, CE and ISO-certified processes, we deliver innovative, high-performance machinery that drives productivity for clients across Europe, the Americas, Africa, and beyond.
FAQ:
Q: What is the minimum order quantity? Can you accept sample orders?
A: The minimum order is 1 unit, sample orders are supported (additional mold debugging costs need to be borne), and bulk orders can enjoy discounts.
Q: What is the payment method?
A: General terms: 30% advance payment, 70% payment before shipment, support T/T, L/C, etc.
Q: How long is the delivery cycle?
A: 20-30 days for standard models, 35-45 days for customized models (including mold development), which needs to be confirmed in combination with order scheduling.
Q: How to arrange transportation?
A: Support trade terms such as FOB, CIF, EXW, etc., and can assist in contacting international logistics (freight needs to be calculated separately).
Q: How long does it take to install the equipment? Do you need an engineer to visit?
A: Basic models can be installed through video guidance, and complex models may require engineers to visit (installation cycle 5-10 days, customers need to bear travel expenses).
Q: Is operation training provided?
A: Free English operation manual + video tutorial, on-site training for operators during door-to-door installation (about 2 days).
Q: How long is the warranty period? How is the after-sales guarantee?
A: 1-year warranty for the whole machine (excluding wearing parts), lifelong technical support, free replacement of non-human damaged accessories during the warranty period, 7×12 hours online response.
